HOWO Tractor Axle Ratio: Gearbox, Tire Size and Route-Based Comparison

A tractor quotation may highlight engine horsepower while leaving the axle ratio to a short specification line. Buyers then compare two ratio numbers without knowing whether the gearboxes, tires or operating assumptions are the same. That is not a controlled comparison of the trucks they will actually receive.

This guide explains the relationship and a practical enquiry method. The numerical example is deliberately hypothetical and is not a HOWO specification, recommended road speed or approved driveline. Current model availability and the suitability of a configuration must be confirmed in the written vehicle proposal.

Define the ratio number before calling an axle fast or strong

Ask the supplier to identify the exact axle model and final-drive ratio offered. Informal labels such as fast axle or heavy-duty axle can hide different meanings. A useful quotation gives the numerical ratio, equipment reference and any relevant configuration limitations.

Keep the axle ratio distinct from the number of driven axles. A 6x4 description does not identify the final-drive ratio, and two 6x4 tractors can have different drivelines. Engine power, gearbox, axle arrangement and final-drive ratio are separate fields in the comparison.

Use the same terminology across suppliers. When discussing a higher or lower ratio, state whether you mean the numerical value. This avoids a conversation in which one party means a numerically lower final drive while another interprets higher as more reduction. Clear language is particularly useful in translated orders.

Obtain the complete gearbox specification

Record the gearbox model and the relevant gear ratios, not only the number of forward speeds. Two transmissions with a similar speed count need not have the same overall gearing. The gear used in a theoretical cruise comparison must be identified explicitly.

Ask the vehicle supplier to assess the actual duty using its engine and transmission information. Loaded starts, gradients and operating-speed patterns require more than a calculation in one gear. A cruise-rpm result alone does not establish startability, driveline suitability or the vehicle’s accepted combination rating.

Keep options and substitutions visible. If the proposed gearbox changes during quotation or production, revisit the ratio comparison instead of carrying forward an old rpm statement. A tidy specification sheet is useful only when all its lines describe the same vehicle build.

Use appropriate tire rolling information rather than diameter by guesswork

Identify tire size, specification and the rolling information used by the supplier. A tire’s nominal size or an unloaded diameter taken from a photograph is not a complete basis for an operating calculation. Use the relevant manufacturer or vehicle-design information for the stated conditions.

Tire choice can also affect fit, ratings and other vehicle questions that are separate from rpm. Do not select a tire only to achieve a preferred theoretical engine speed. The complete vehicle configuration needs to remain suitable and accepted for its intended duty.

If a fleet plans to use a different tire after delivery, disclose that during enquiry. Ask the responsible vehicle specialist what must be reviewed and whether documentation or other vehicle systems are affected. This article does not recommend a tire substitution or provide a modification procedure.

Understand the arithmetic before comparing fuel claims

In a simplified steady-state calculation, road speed and effective tire rolling circumference determine wheel revolutions per minute. Multiplying wheel rpm by the final-drive ratio and the selected gearbox ratio gives a theoretical engine rpm, subject to the assumptions of that driveline arrangement.

A convenient form is: engine rpm equals speed in kilometres per hour multiplied by 1,000, divided by 60 and tire rolling circumference in metres, then multiplied by gearbox ratio and axle ratio. Use this only as an explanatory screening relationship, not as a substitute for manufacturer assessment.

The formula does not calculate fuel consumption. It also does not show how the vehicle will select gears, respond to gradients or operate through a real route. A lower calculated rpm is one comparison result, not an automatic verdict that a truck is more economical or better suited to the job.

Hypothetical gearing example—not a HOWO build specification

Interpret the example without turning it into a recommendation

Only one assumed input changes in the table: the numerical axle ratio. The result therefore illustrates its effect on theoretical rpm at the same speed, rolling circumference and gearbox ratio. None of the assumed values is asserted to be available on a particular HOWO model.

If the gearbox ratio or tire rolling information changes as well, the comparison must be recalculated on the new basis. A lower axle-ratio number can be offset by another driveline difference. This is why reading one line of two quotations is not enough to compare the complete trucks.

Actual selection also requires the engine’s operating characteristics and the manufacturer’s application assessment. The example supplies no acceptable engine-speed band, grade capability or fuel-saving percentage. It is a way to ask clearer questions, not an instruction to order or modify a driveline.

Describe the route beyond its average distance

List combination mass, typical and difficult gradients, operating-speed patterns and routine loaded starts. Include customer entrances and yards as well as the main highway. A long-distance route can still have a demanding start or access condition that influences the vehicle specification.

Volvo Trucks’ axle-selection guidance identifies combination weight, topography and assignment as important inputs. Those general principles explain why a ratio is not selected in isolation. They are not HOWO product data and do not establish that a particular feature or ratio is available in the truck being offered.

Give the HOWO supplier the actual duty and request a written configuration response. If information is missing, keep the affected conclusion open. Do not use a general regional description or engine horsepower as a substitute for the route and load information needed to assess the proposed vehicle.

Source: Volvo Trucks: General axle-selection inputs

Compare the offered HOWO build, not a collection of catalogue options

Use the HOWO 6x4 tractor product page as a product enquiry entry point and the HOWO tractor product range to explore the relevant range. Ask GENRON for the exact market, model and build schedule proposed. A product-family page does not confirm every engine, gearbox or ratio option for every destination.

Keep the engine, transmission, axle, tires and relevant ratings on one accepted specification. Identify whether the truck is supplied in that complete configuration and what equipment is included. Do not assemble an apparently attractive specification from options that have not been confirmed together.

If a quotation proposes an alternative to the requested ratio, ask what operating assumptions support it. Compare the complete recommendation rather than accepting or rejecting it because the number differs from a familiar fleet truck. The useful answer explains the duty, configuration and limitations in a traceable way.

Treat fuel consumption as a separate evidence question

A supplier may expect a driveline to suit a particular duty, but a fixed fuel-saving claim needs evidence and defined conditions. Ask whether the figure comes from a comparable trial, a manufacturer estimate or another source. Keep estimates labelled rather than converting them into guaranteed fleet results.

For a measured comparison, record the vehicles, loads, routes, speed patterns and method. Different cabs, tires, trailers or driving conditions can affect the result. The buyer should understand what the comparison controls before attributing every difference to the axle ratio.

Include service and operational fit in the decision as well. A theoretical fuel advantage is not the complete commercial result if the vehicle cannot cover agreed work or requires an unplanned operating arrangement. Equally, do not specify additional capability without identifying the duty that requires it.

Check trailer interfaces alongside the driveline choice

The tractor will normally work with a particular trailer fleet. Provide trailer types, relevant coupling information and loaded operating cases. A ratio discussion should not distract from the complete combination’s physical and rating requirements.

Ask the responsible supplier to identify the trailer assumptions behind its vehicle recommendation. A tanker, container chassis and low bed can present different duties even when the same tractor model appears in a sales list. Keep the actual work visible in the accepted build proposal.

If the fleet changes trailer types later, review the relevant operating assumptions. A tractor selected for one defined assignment is not automatically accepted for every heavier or more difficult job. Clear configuration records help dispatch distinguish routine covered work from a new application requiring assessment.

Do not treat a ratio change as an informal workshop adjustment

Changing final-drive or tire-related configuration can affect more than a preferred rpm at cruise. The responsible manufacturer or vehicle specialist should assess the complete change and identify the documentation, equipment and applicable requirements involved.

This article provides no mechanical replacement, calibration or adjustment instructions. Do not choose parts from an unverified ratio label or assume that similar housings establish interchangeability. Obtain the exact equipment references and an approved route for any proposed modification.

For a new purchase, it is usually clearer to settle the configuration during order review rather than plan an unspecified alteration after arrival. If local service or parts availability influences the choice, make that a documented procurement requirement and ask the supplier to address it explicitly.

Close the comparison with a reproducible specification

A useful final comparison identifies each vehicle build, the same route brief and the evidence used for its recommendation. Include the calculation inputs if theoretical rpm was discussed. Another reader should be able to understand the result without guessing which tire or gearbox was assumed.

At handover, reconcile the delivered equipment identities and documents with the accepted schedule. Record substitutions before relying on the original comparison. A different gearbox or axle specification should not be hidden behind a general statement that the truck remains the same model.

Retain the route brief and final build record for future orders. They make a repeat purchase more focused and allow the fleet to explain what changed. The objective is a driveline selected for a defined assignment, not one ratio number promoted as the best answer for every operator.

HOWO driveline comparison brief

Destination market, model and complete build reference:
Engine and gearbox models with relevant ratios:
Axle model and numerical final-drive ratio:
Tire specification and rolling information used:
Trailer fleet and loaded-combination cases:
Route, operating speeds and loaded-start conditions:
Evidence for performance or fuel statements:
Delivery identity checks, support and change control:

FAQ: HOWO tractor axle-ratio selection

Why might observed engine speed differ from the screening example?

First confirm the actual gear, vehicle build, road speed and rolling information used in the comparison. The table assumes one simplified steady-state arrangement, not every operating condition. A different reading does not by itself establish a defective axle or incorrect truck. Give the actual records to the responsible vehicle specialist rather than adjusting equipment to force agreement with a hypothetical example.

Does a lower numerical ratio always save fuel?

No. It changes overall gearing under stated conditions, but real fuel use depends on the complete vehicle and duty. Compare appropriate evidence rather than treating theoretical rpm as a fuel calculation. The engine, gearbox, tires, load and route must be considered together.

Does 6x4 identify the final-drive ratio?

No. It describes the driven-axle arrangement in conventional notation, not the numerical reduction. Ask for the exact axle and ratio in the proposed build. Two trucks with the same axle-layout label can have different drivelines.

Can two gearboxes with the same number of speeds be compared as identical?

No. Obtain their models and relevant ratios. The selected gear is one input to a theoretical rpm comparison, and other aspects of the manufacturer’s application assessment still matter. A speed count is not a complete transmission specification.

Are the example ratios and rpm figures actual HOWO specifications?

No. Every input in the table is hypothetical and used to demonstrate the arithmetic. No model availability, recommended speed, acceptable rpm band or fuel result is asserted. Obtain the exact market-specific proposal from the vehicle supplier.

Can I change tire size to reach the rpm I want?

Do not make that decision from rpm alone. The complete vehicle, ratings, fit and any affected systems require appropriate specialist review. This guide explains the relationship but does not approve a tire or driveline modification.

What is the most useful first enquiry to GENRON?

Send the destination, trailer fleet, loaded operating range, route and difficult start conditions. Ask for one complete model-specific build schedule and the assumptions behind it. That is more useful than requesting a familiar ratio without explaining the assignment.

Product Options to Discuss

• HOWO 6x4 tractor product page

• HOWO tractor product range

Confirm the exact destination-market build and available ratios in writing. No optional driveline or performance result is assumed from a family page.

Related Reading

• HOWO tractor quotation comparison

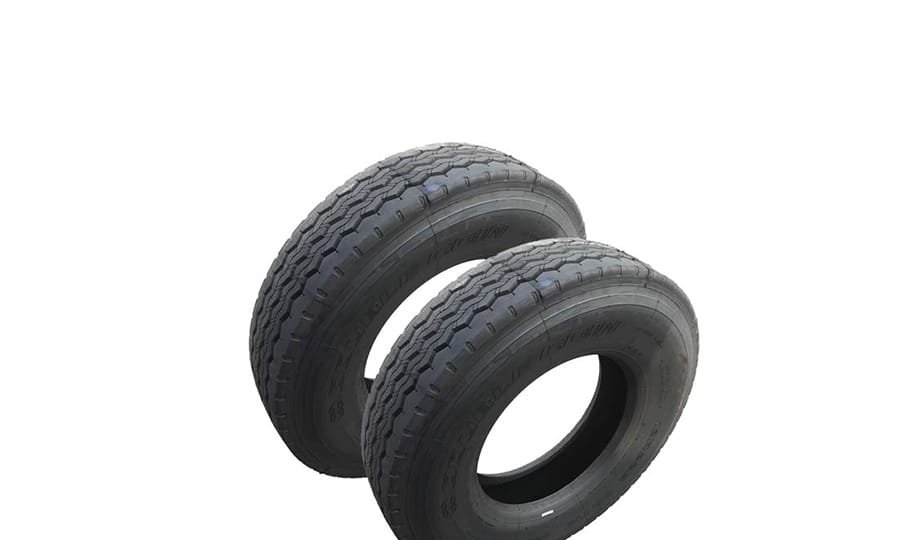

• Tire specification and compatibility

• Tractor and trailer interface checks

References

• Volvo Trucks: General axle-selection inputs

The source explains general selection principles, not HOWO proprietary specifications. The calculation is hypothetical and does not establish fuel consumption, road permission or modification approval.
