Landing gear selection involves both load information and installation dimensions. A set with a suitable rating can still have the wrong mounting height, insufficient travel or a handle that cannot be operated around nearby equipment. Start by separating the ratings, then compare the complete installation.
Lifting Capacity and Static Test Load Are Not the Same

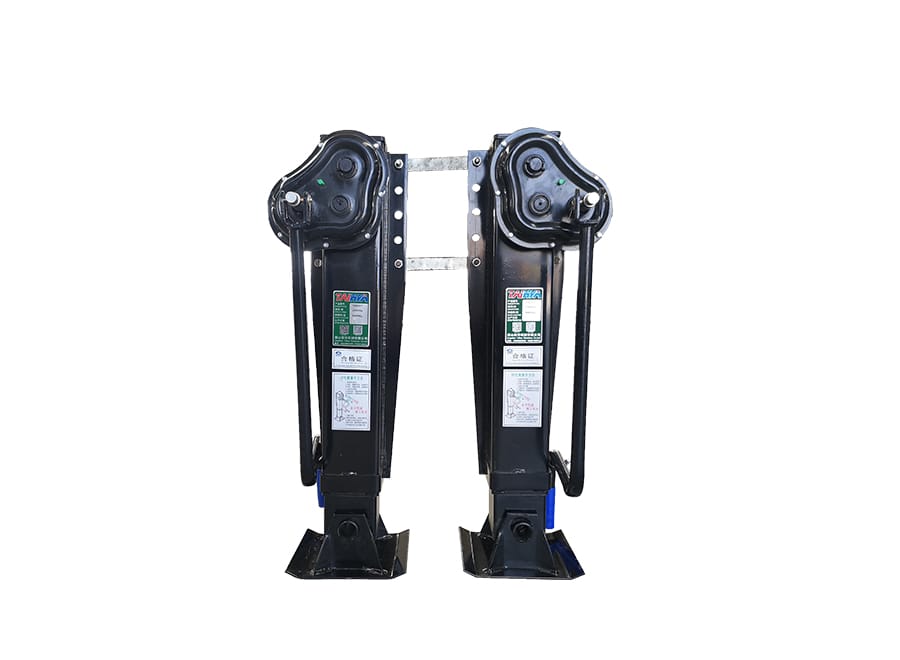

Lifting capacity relates to raising a load under the manufacturer’s specified operating conditions. Static test load is a different stated test condition. As a manufacturer-specific example, JOST lists a 24 t lifting capacity and a 50 t static test load per set for MODUL B. Those are JOST MODUL B figures, not ratings for the GENRON legs pictured here. They illustrate why a buyer should not read a static test figure as the normal lifting capacity, or confuse a per-set figure with a per-leg figure.
Compare the Working Heights With a Drawing
Check the mounting position, retracted dimensions and available extension. The relevant heights come from the trailer’s actual coupling and parking arrangements. A photograph of a leg cannot show whether it will fit beneath a different chassis or leave enough clearance when retracted. For replacement, send the existing model identification and mounting dimensions rather than ordering solely by a capacity label.
Feet and Operating Access Are Part of the Selection
Foot designs differ, and their approved applications should be checked with the quoted model. Describe the parking surface and the operator’s support procedure. Also show the crank side and the space around spare wheel carriers, frame members or other accessories. The chosen arrangement needs to fit the trailer and give the operator access without interference. Unsuitable ground conditions cannot be solved simply by choosing a higher nominal rating.
Define What “A Set” Includes
Ask whether the quotation includes both legs, feet, connection shaft, handle and the specified mounting or bracing items. Supply packages differ. JOST’s modular catalogue, for example, identifies components that can be ordered separately. The receiving check should compare the quoted assembly with the delivered items before installation. Keep the model and parts information with the vehicle record so a later replacement does not depend on a photograph alone.
Landing Gear Comparison Sheet
| Item | Compare in the quotation |
|---|---|
| Load information | Lifting rating, static or test rating, and whether each applies per set or per leg. |
| Installation dimensions | Mounting height, retracted position, extension and available travel. |
| Foot arrangement | Quoted type, approved application and parking-surface requirements. |
| Operating access | Crank side and clearance around frame-mounted accessories. |
| Included parts | Legs, feet, shaft, handle and specified installation components. |
Measurements and Photos to Send
Trailer model and existing landing gear marking.
Mounting drawing or measured installation dimensions.
Required operating heights and available crank space.
Parking conditions and the requested supply scope.
A Common Rating Question
Can I use the static test load as the lifting rating?
No. Read the separate ratings and their definitions for the exact model. A test figure is not approval to lift that load in normal operation.
Related Products and Reading
Sources and Application Notes
The MODUL B figures above are taken from JOST’s own technical data per set. Use the documentation for the actual model quoted or fitted.
Request a landing gear set from GENRON. Send the model marking, installation dimensions and required included parts so the proposal describes a complete, identifiable set.
