Product Details

Product Overview

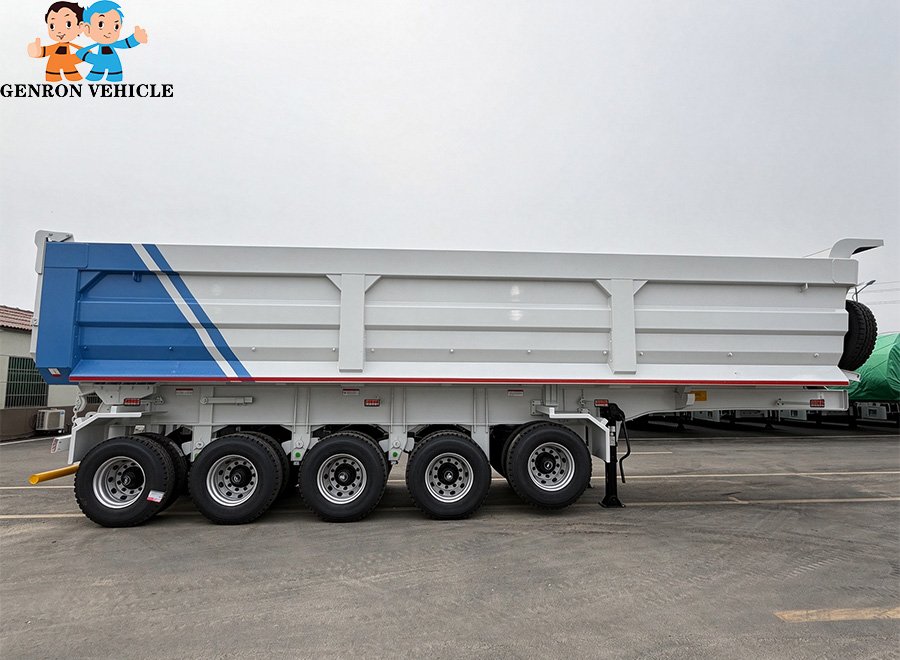

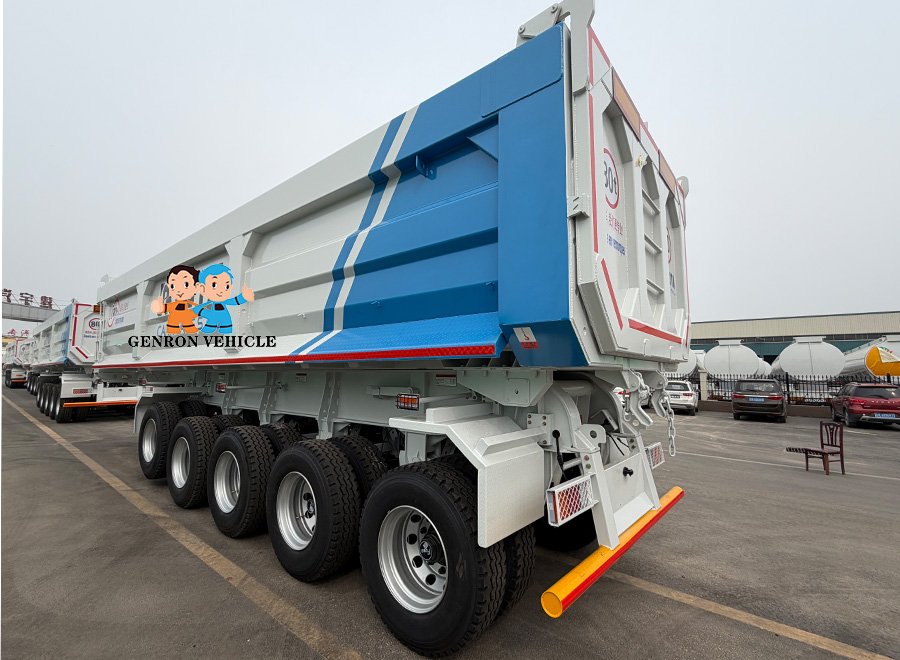

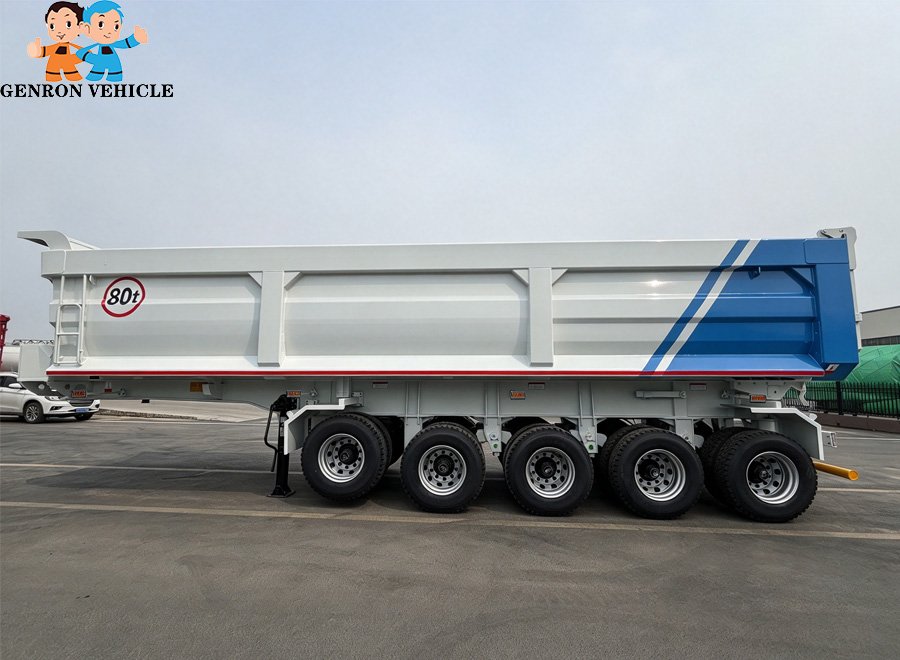

Our 5-Axle Rear Dump Semi Trailer is a heavy-duty transport solution built for tough mining, quarry and infrastructure bulk haulage projects. It features air suspension with the first two axles liftable, delivering excellent load distribution and allowing safe transportation of up to 80 tons of ore, coal and stone in compliance with local axle load regulations. Fabricated with ultra-high-tensile steel and fitted with a robust hydraulic tipping system, it maintains outstanding stability and service life on rough roads across Africa and other overseas markets.

Trailer Weight (T)	15.8 Tons
Overall Dimension (mm)	11500 × 2500 × 3700
Loading Capacity (T)	80 Tons
Body Volume (m³)	40 m³
Axle	5*13T FUWA （Number one in China）
Tire	315/80R22.5-18PR, 16+1 pcs
Rim	9.00-22.5 16+1 pcs
Leaf Spring	90×16×10 pcs
King Pin	2.0 or 3.5 inch

Specifications

Key Selling Points

80 Ton Rated Payload: Specially engineered for 80-ton bulk cargo transport, cutting your transportation cost per ton efficiently.

Liftable 1st & 2nd Axles + Air Suspension: The front two axles can be lifted when empty or lightly loaded, reducing tire wear and fuel consumption; air suspension brings better shock absorption and load balancing.

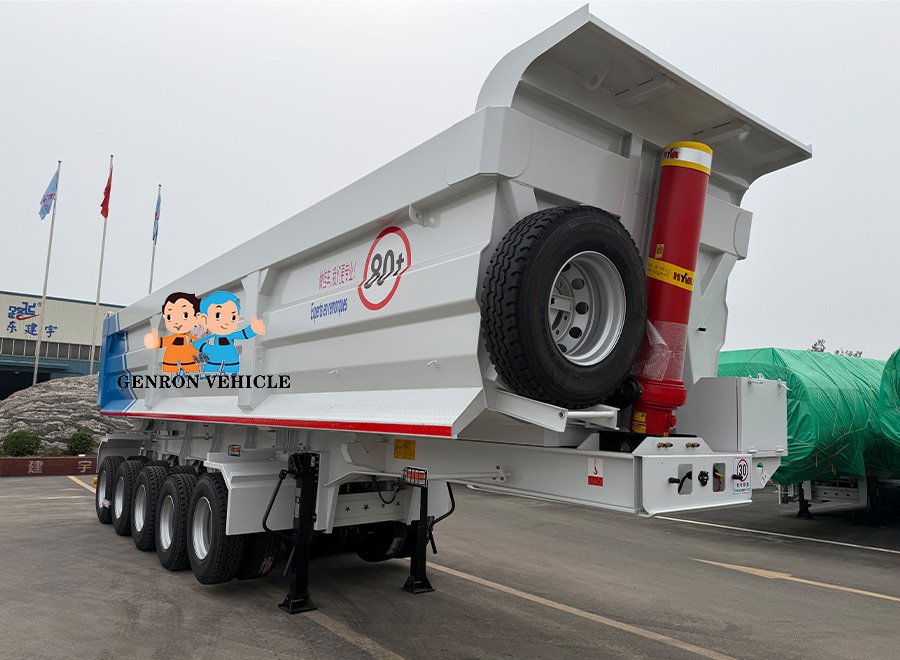

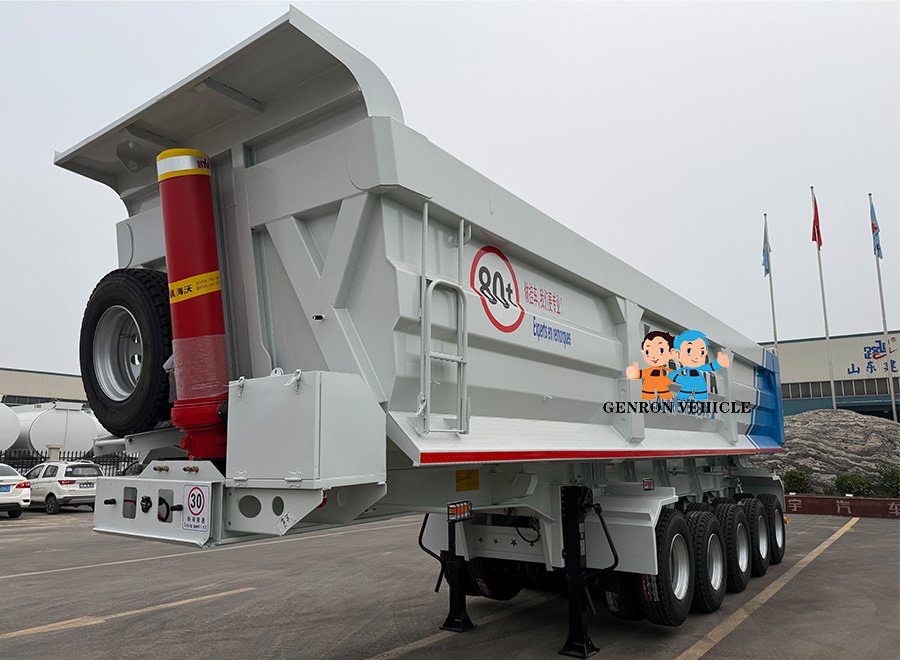

Reinforced Hydraulic Tipping System: Adopts heavy-duty multi-stage hydraulic cylinders (HYVA type optional), achieving smooth, steady and safe dumping operation.

T700 High-Tensile Steel Cargo Body: The tipper box is made of T700 high strength wear-resistant steel, anti-impact and anti-abrasive, resisting deformation from rocks and mineral materials.

5-Axle Rational Layout: Well-designed axle spacing to meet road weight limit rules in African countries, lower overload risks.

Why Partner With Us?

Professional Heavy Trailer Manufacturer: Rich experience in manufacturing mining dump semi trailers adapted for African working conditions.

Localized Customization: We can adjust dimensions, axle configurations and painting logos to fit your target market’s transport rules.

Reliable Export Packing & Shipment: Professional rust prevention and secure container lashing for long ocean shipping.

Gallery

Inquiry Now

Product Name:Heavy Duty 5 Axles Rear Dump Semi Trailer Large Volume Tipper Trailer

5-Axle 80-Ton Rear-Dump Semi-Trailer | Mining Dump Trailer with Lift Axle
