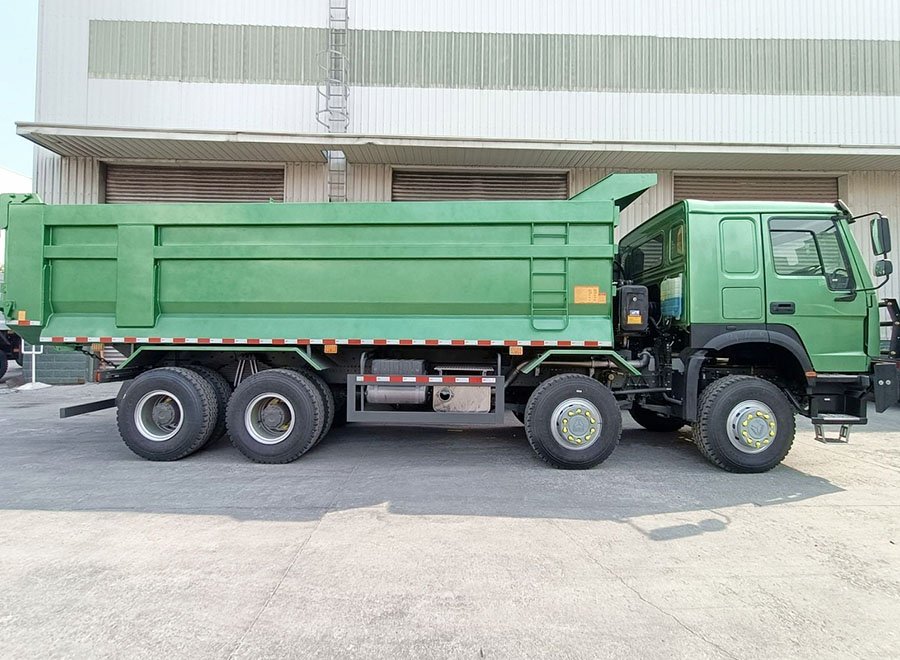

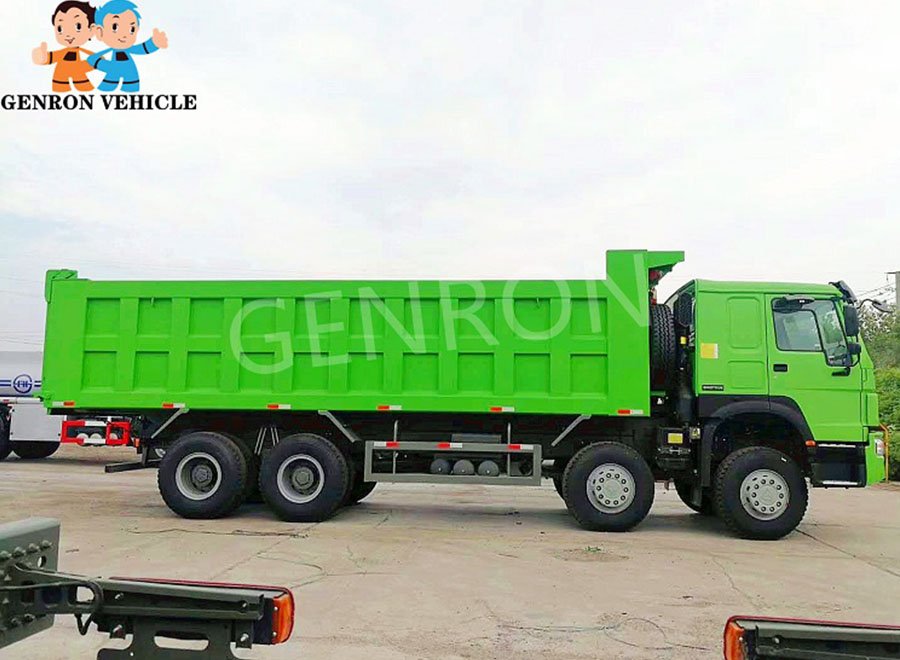

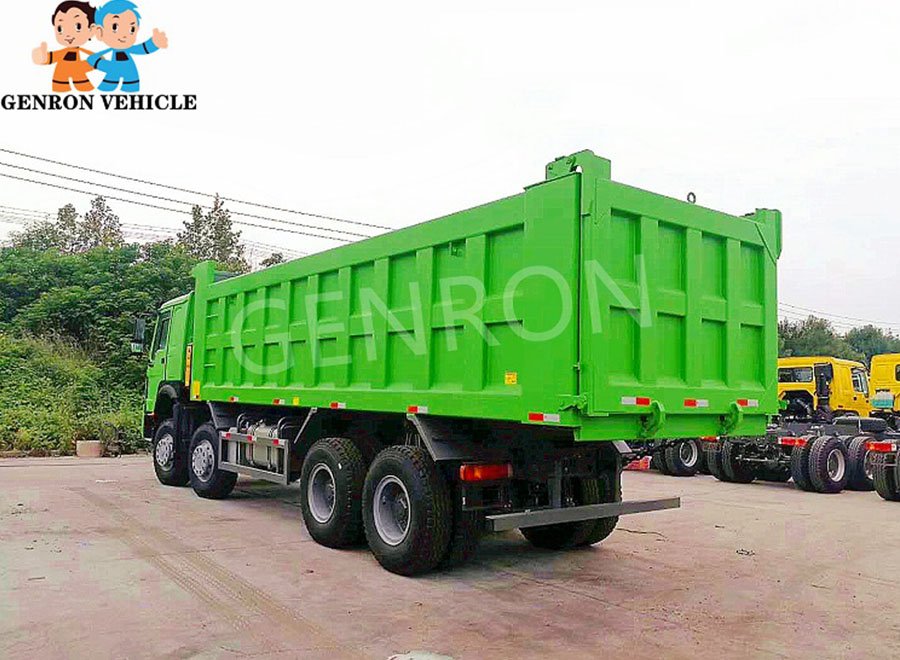

12 Wheeler HOWO Mining Tipper Truck Heavy Duty 40-50 Tons 8×4 Dump Truck
Product Details
Product Overview:
The SINOTRUK HOWO 8×4 dump truck is a heavy-duty titan engineered for large-scale mining operations and massive infrastructure projects. With its dual front-steering axles and reinforced 12-wheel configuration, it offers unmatched stability and loading capacity. Powered by a high-torque engine, this truck is designed to perform in the most extreme conditions across Africa, South America, and the Middle East, ensuring maximum productivity with minimal downtime.
![]()
![]()
![]()
Specifications
Overall Dimensions (L*W *H) | 10800mm*2550mm*3500mm |
Box Dimensions (L*W*H) | 7600mm*2300mm*1500mm; manganese plate, floor 10mm, side 8mm, front lifting hydraulic system |
Cab | HW76, single sleeper, with air conditioner, high mental bumper |
Horsepower | 371HP, 380HP, 400HP |
Fuel Type | Diesel |
Emission Standard | EURO 2 |
Gearbox | HW19710, 10 forwards & 2 reverses, with PTO |
Front Axle | VGD95, 2*9500kg, drum brake |
Rear Axle | MCX16ZG, 2*16000kg, drum brake, Ratio: 5.451 |
Steering System | LHD or RHD |
Tyre | 12.00R20, 13 pcs (including one spare tire) |
Fuel Tank Capacity | 300L |
Unrivaled Loading Capacity: The 8×4 (12-wheeler) layout provides superior weight distribution, allowing for payloads up to 50 tons while maintaining excellent steering control.
High-Torque Performance: Equipped with the reliable WEICHAI/SINOTRUK engine, providing massive power for heavy-duty climbing and off-road mining.
Military-Grade Chassis: Features a double-layer reinforced high-strength frame and HC16/AC16 heavy-duty reduction axles to resist bending and fatigue under extreme loads.
Heavy-Duty Mining Bucket: Constructed with high-tensile Q345B or NM450 wear-resistant steel, reinforced with extra stiffeners to withstand the impact of large rocks.
Global Spare Parts Support: As the most popular 8×4 truck in the global South, parts and service are available in every major logistics hub, ensuring your truck stays operational.
![]()
![]()
![]()
Direct Export Expertise: 20 years of experience in delivering original HOWO trucks to mining projects in Africa and South America.
Project-Specific Customization: We can adjust the bucket thickness, tire type, and suspension based on whether you are hauling coal, gold ore, or sand.
Cost-Effective Shipping: Expertise in Ro-Ro and Bulk shipment lashing, providing professional anti-rust coating for safe sea transit.
