Super Link Flatbed Semi Trailer

Product Description:

Share:

Product Details

Product Overview:

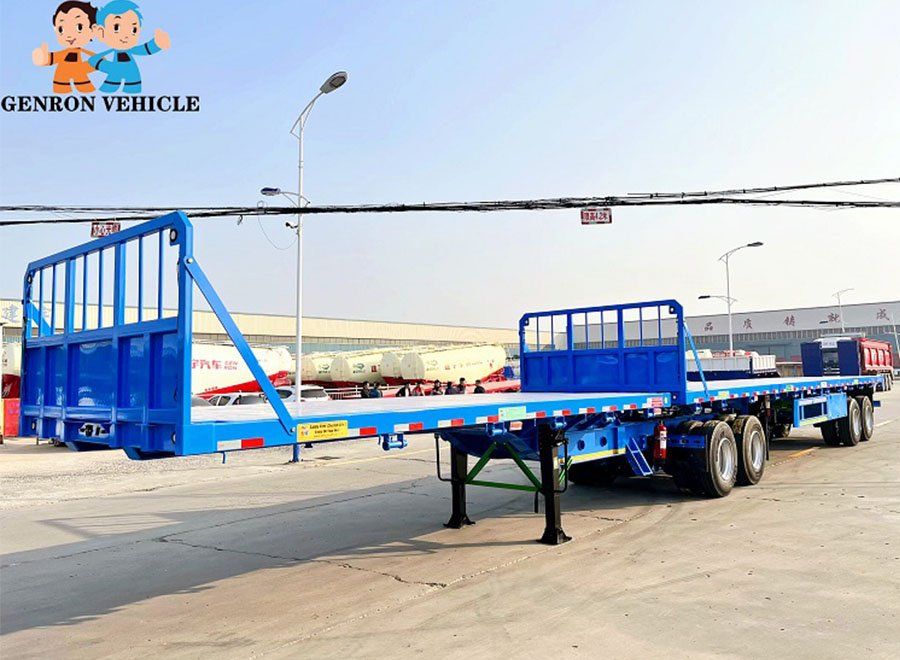

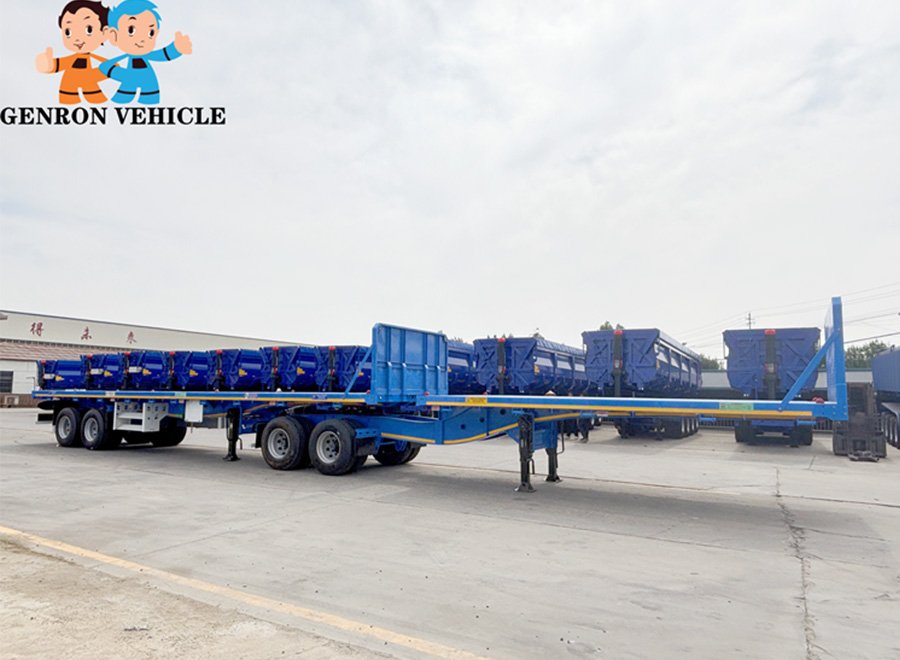

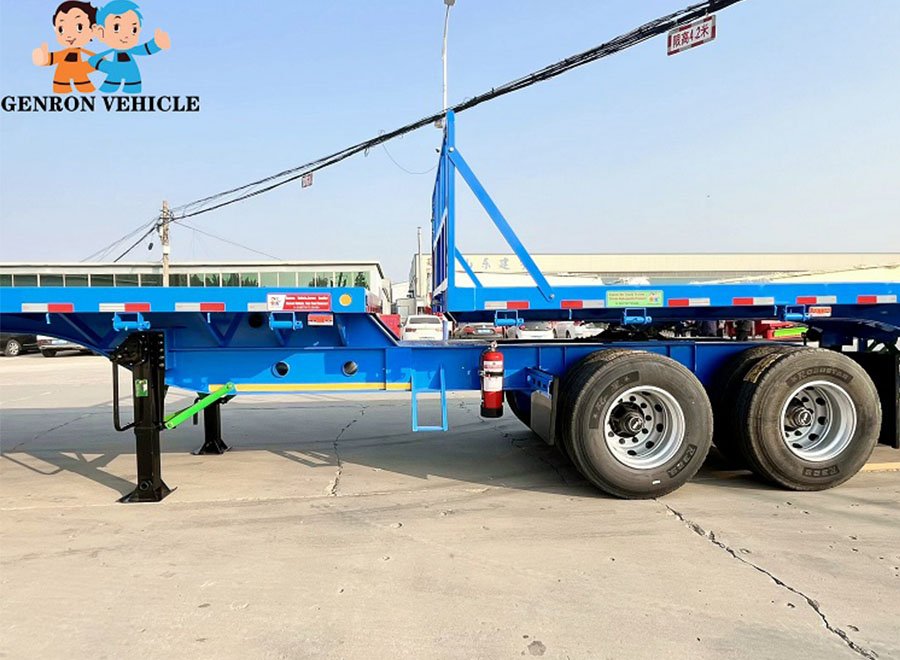

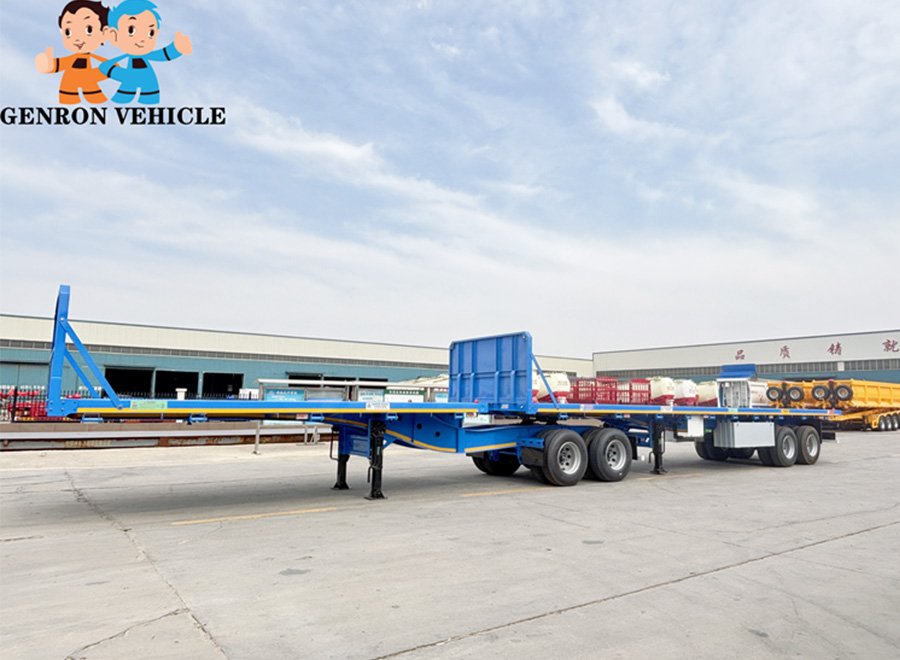

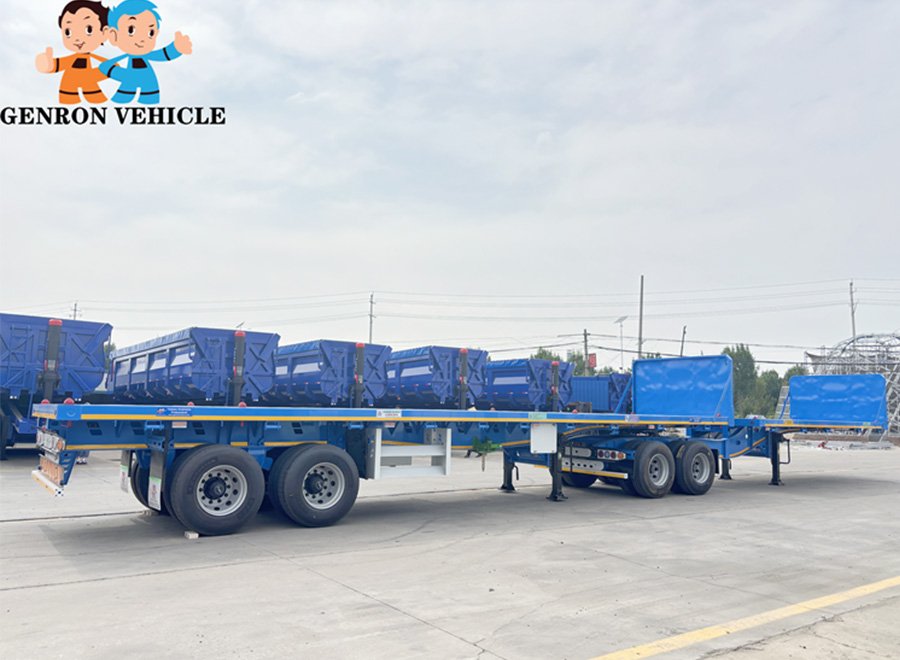

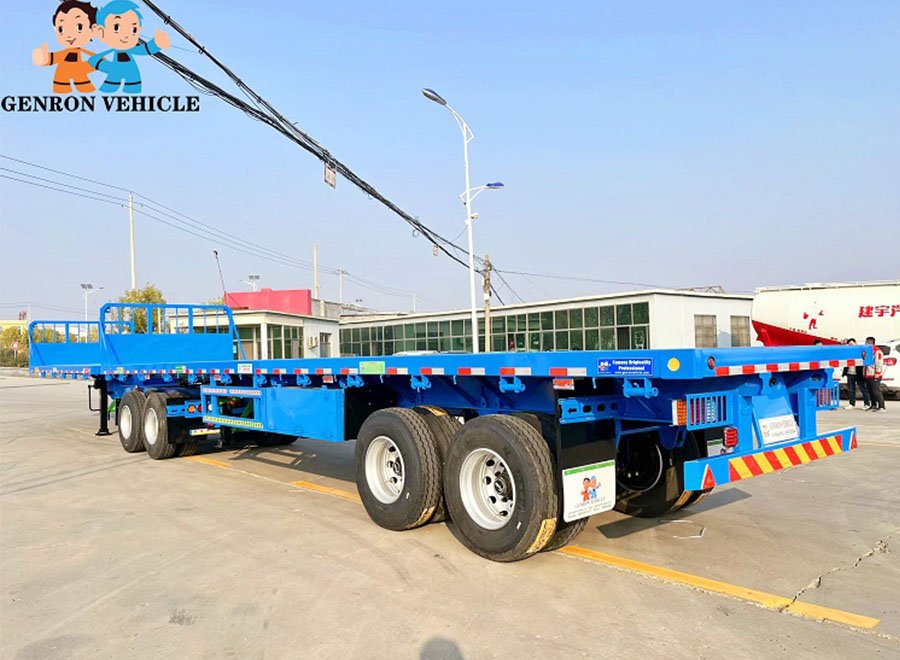

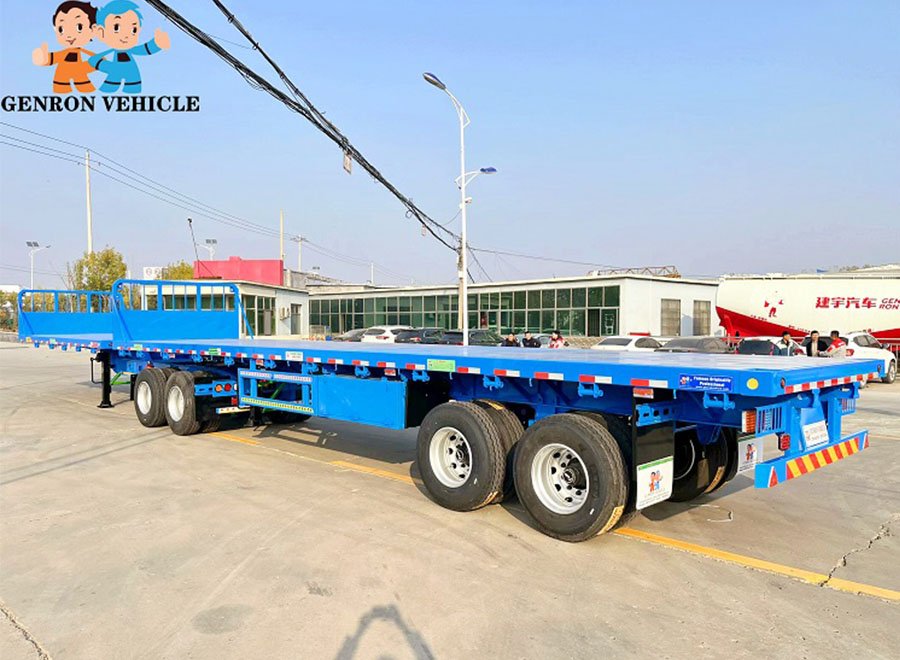

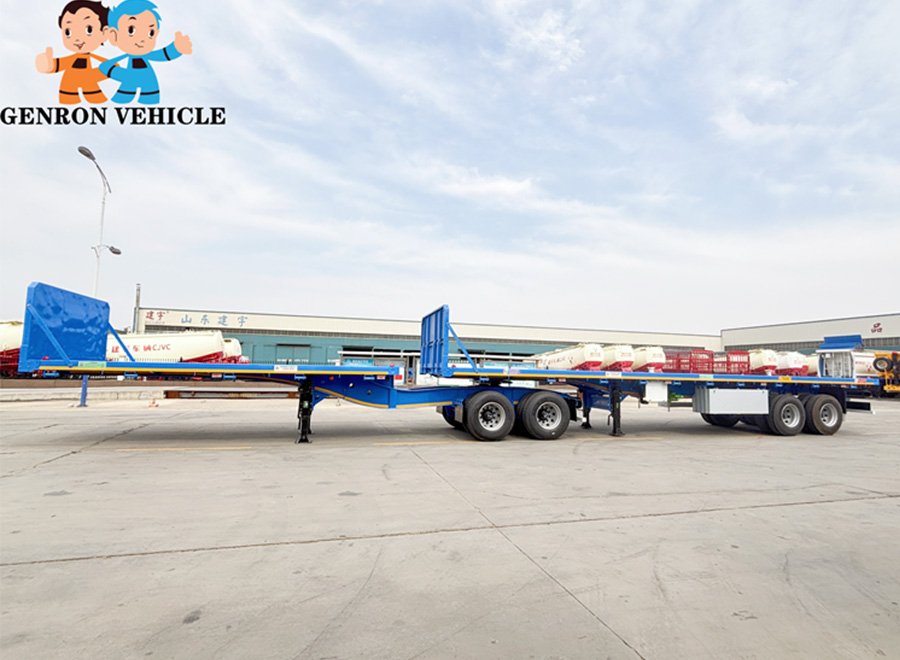

Maximize your transport efficiency with our Super Link (B-Double) Flatbed Semi Trailer. Consisting of a 20ft front trailer and a 40ft rear trailer linked together, this configuration offers a massive loading capacity of up to 60 tons. Specifically designed for the long-haul corridors of Southern Africa and South America, our Superlinks provide superior stability and a smaller turning radius compared to long single trailers, making them the ultimate choice for large-scale container and bulk cargo logistics.



Specifications


Outside Dimension

6200×2590×1500mm(Front)

12400×2590×1500mm(Rear)

Loading Capacity

≤60T

Bottom Plate

3mm diamond steel plate

Twist Lock

4+8/12 pcs

Axle

13T FUWA axles, 2 pcs+2 pcs

Tire

12R22.5, 8+8 pcs

Rim

9.00-22.5, 8+8 pcs

Suspension

Mechanical suspension

Spring Leaf

90(width)mm*13(thickness)mm*10 layers, 8pcs

Support Leg

28T heavy duty

King Pin

2.0 or 3.5 inch

Valve

WABCO emergency valve

Color and Logo

Customized



Key Selling Points:

Maximum Payload Efficiency: Transport two 20ft containers or one 40ft + one 20ft container simultaneously, reducing the number of trips and fuel costs.

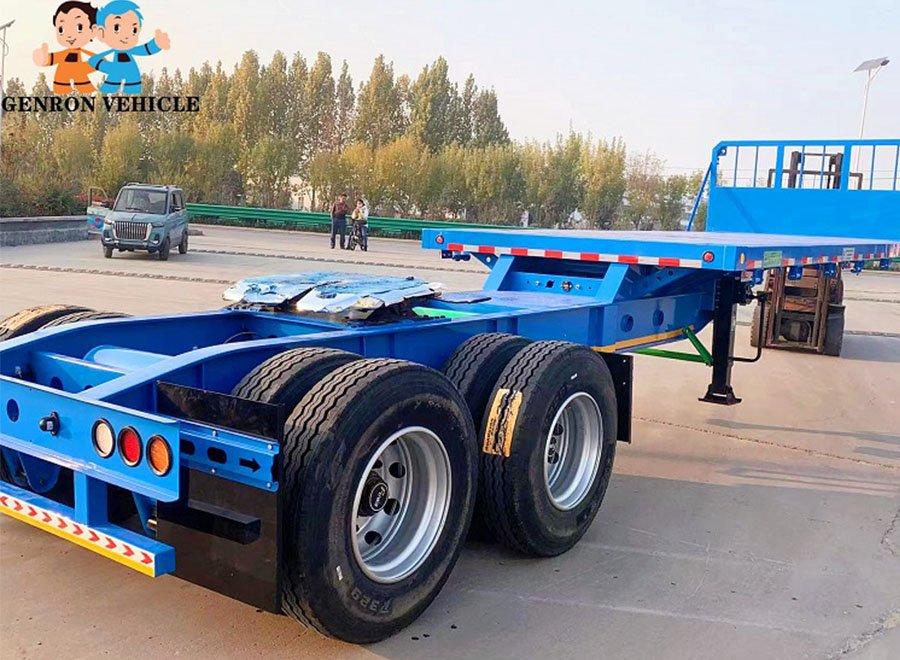

High-Flexibility Interlink System: The front trailer is equipped with a high-quality fifth wheel to connect the rear trailer, ensuring smooth articulation and easy maneuvering.

Reinforced Chassis for Heavy Loads: Built with Q345B high-tensile steel and heavy-duty "I" beams to handle the immense stress of dual-trailer operations.

Heavy-Duty Axle & Suspension: Equipped with 13T/16T FUWA or BPW axles and reinforced mechanical leaf springs to endure long-distance cross-border transport.


Why Partner With Us?

1.Interlink Specialists: We have years of experience in engineering Superlinks that comply with South African (SABS) and South American road standards.

2.Cost-Effective Shipping: We offer professional disassembly and stacking solutions to fit trailers into containers or onto bulk vessels to save your freight.

3.Direct After-Sales Service: Genuine spare parts and technical support are available 24/7 to minimize your fleet's downtime.
