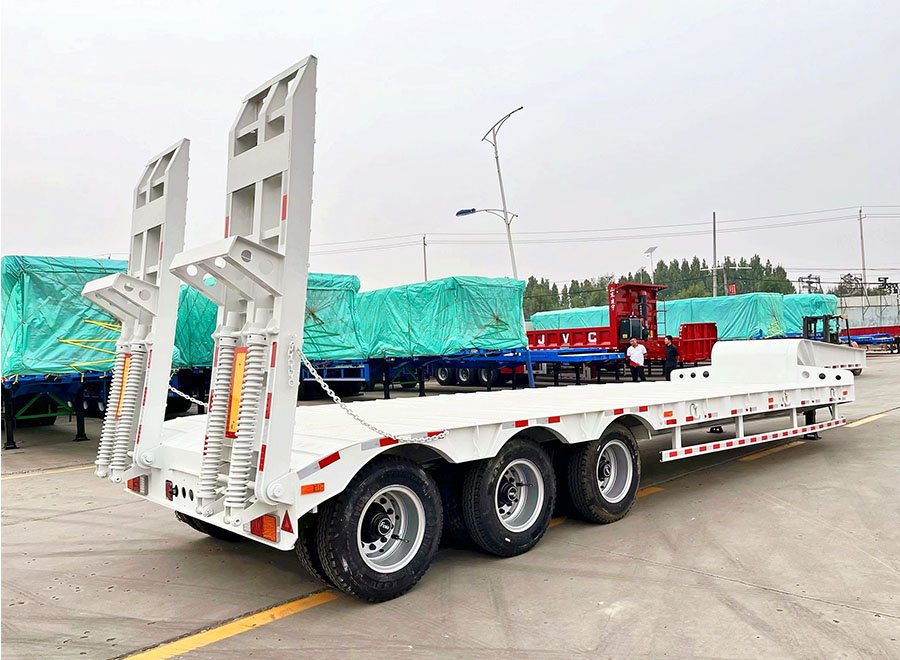

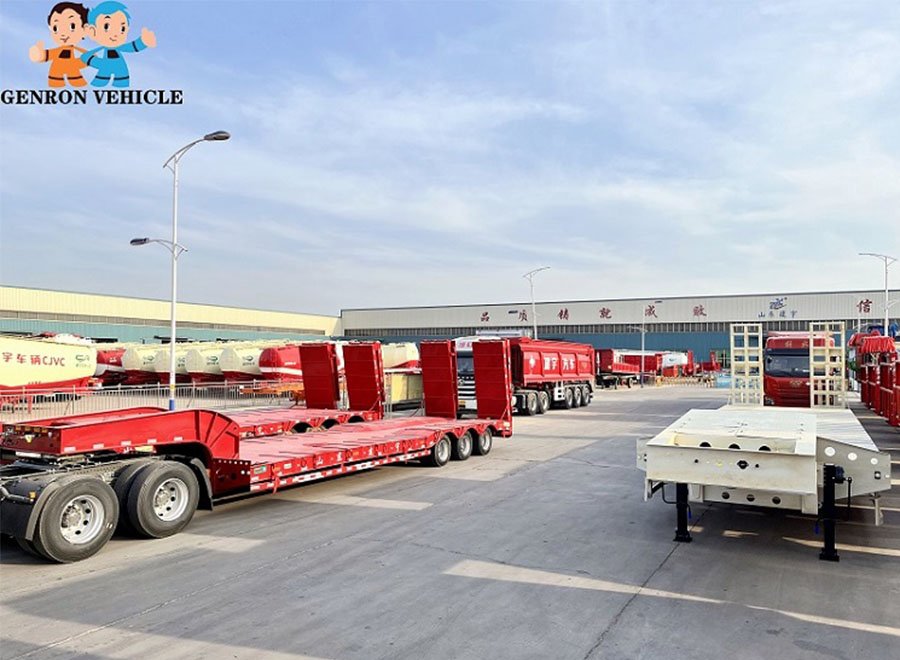

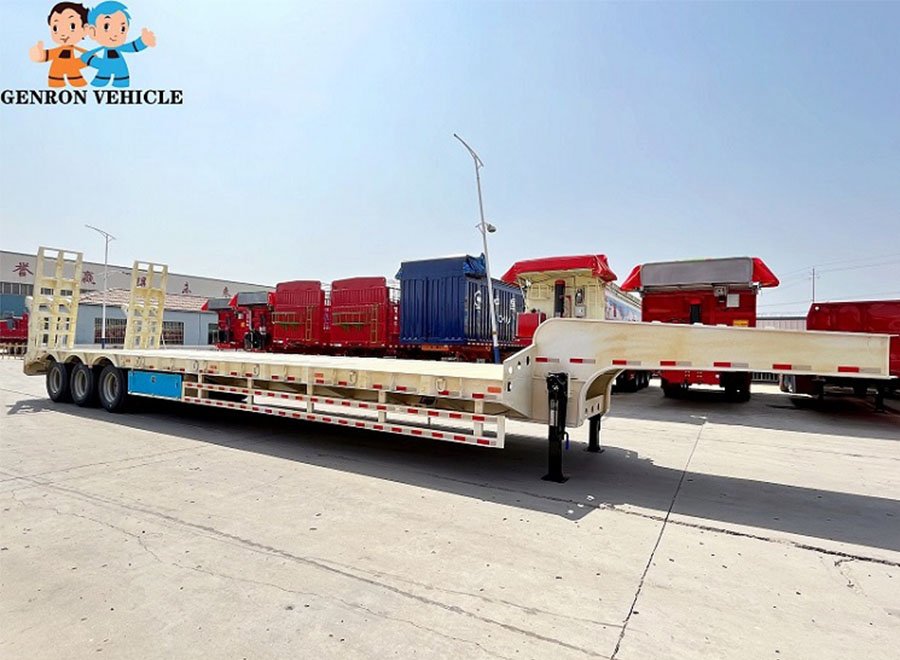

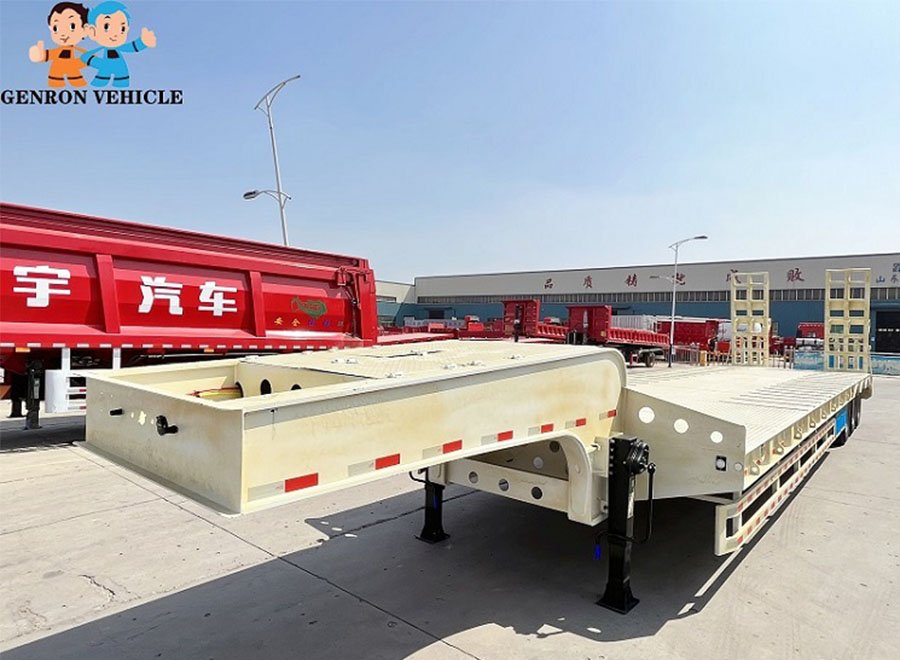

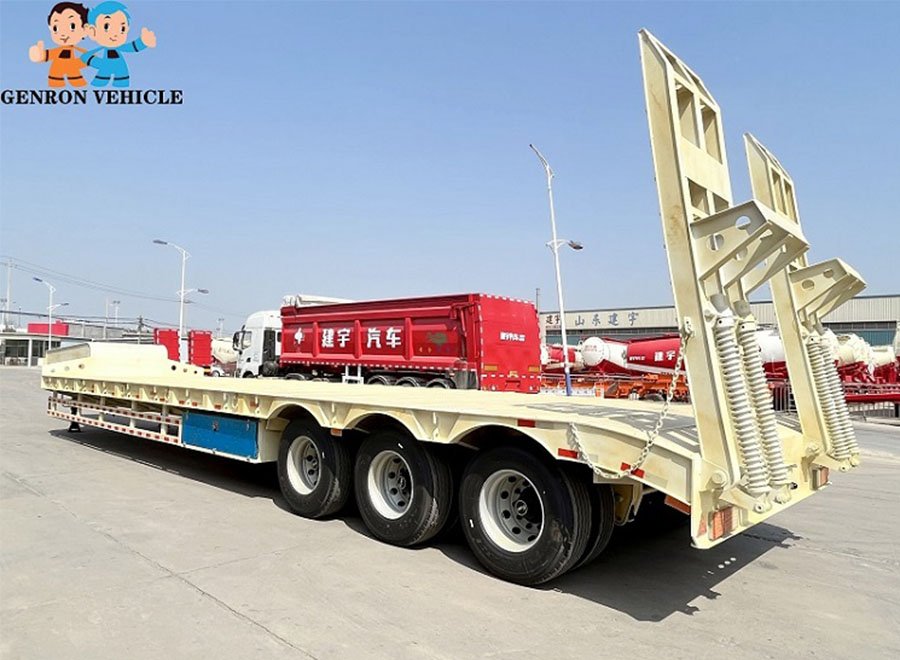

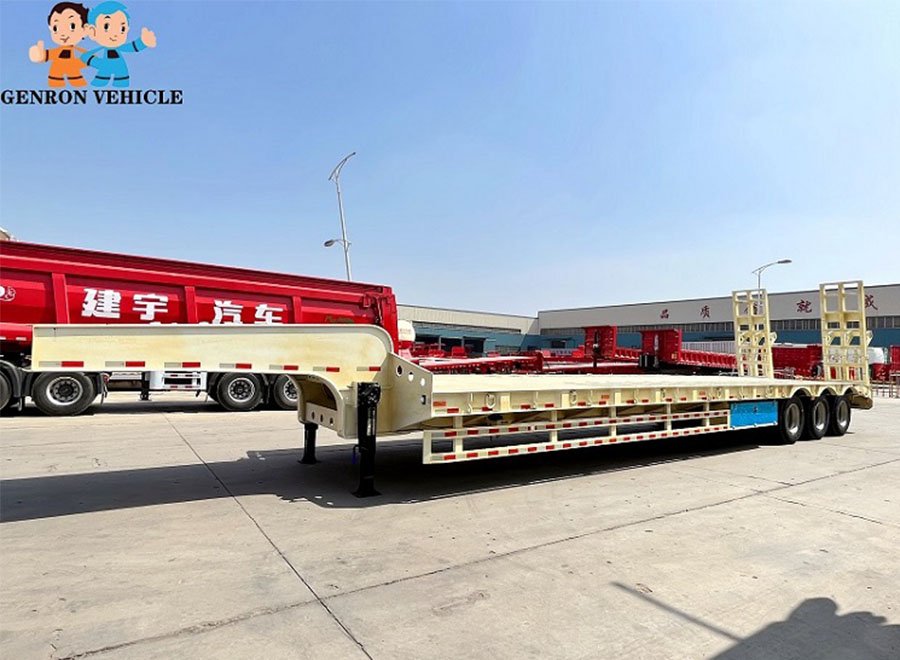

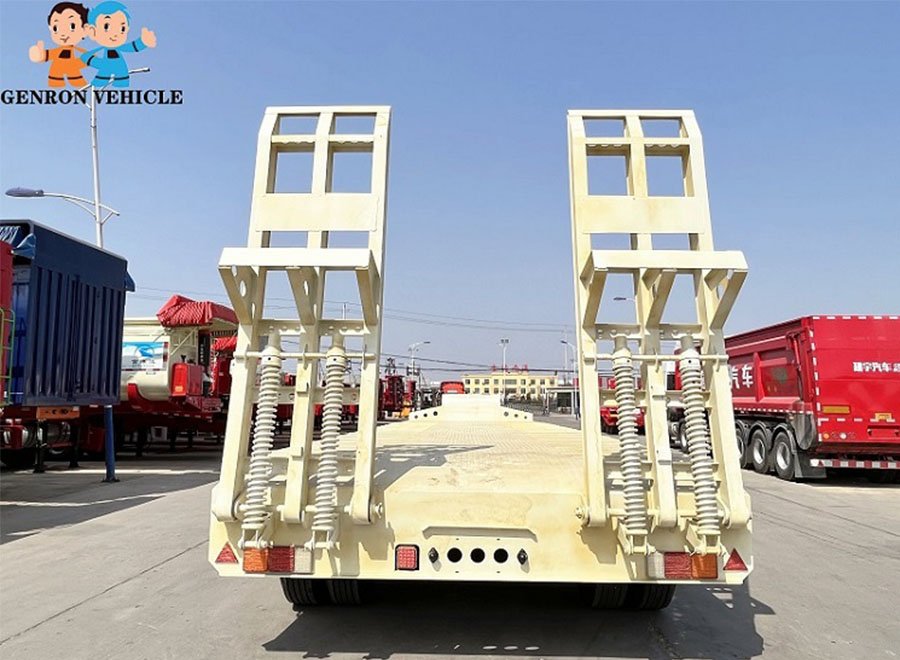

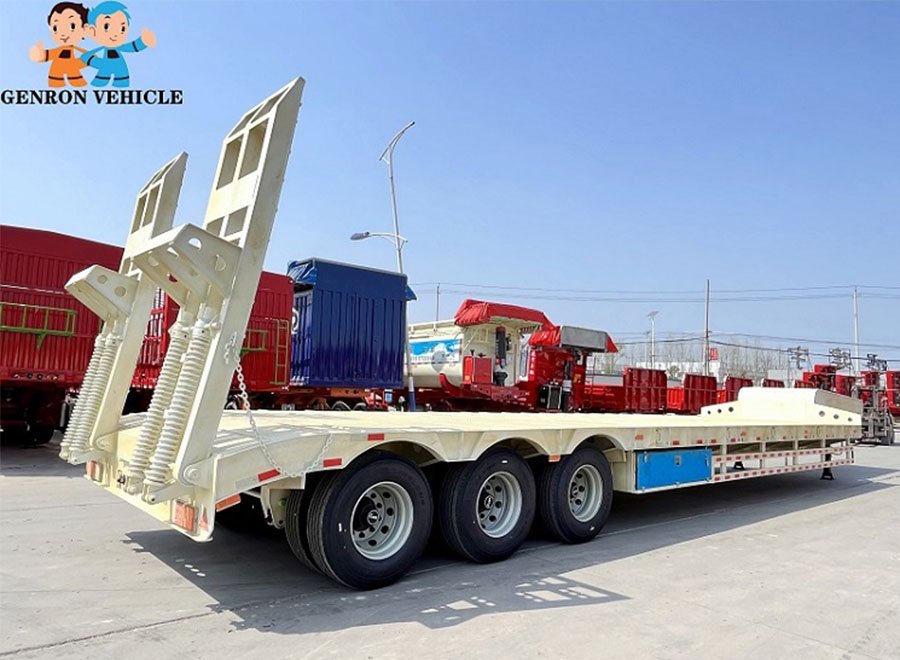

Heavy Duty 3 Axles Low Bed Semi Trailer for Excavator and Machinery Transport
Product Details
Product Overview:
Our 3 axles low bed semi trailer (also known as a lowboy trailer) is engineered specifically for the most demanding heavy-equipment transportation tasks. With a lower center of gravity and reinforced loading ramps, it provides maximum stability when hauling excavators, bulldozers, and other construction machinery. Built with high-tensile steel to withstand the rugged road conditions of Africa, Southeast Asia, and South America, this trailer is the reliable partner for your engineering projects.
Specifications
Outside Dimension | 13000×3000×1800mm |
Loading Capacity | 40T-60T |
Bottom Plate | 4mm diamond steel plate |
Main Beam | Upper plate thickness 12mm, Down plate thickness 14mm, Middle plate thickness 10mm, Material:T700 |
Side Beam | 250mm “I” beam |
Ladder | Mechanical or Hydraulic Ladder |
Axle | 3 axles, 13T per piece |
Tire | 8.25R20, 12 pcs |
Rim | 6.5-20 carbon steel rim, 12 pcs |
Suspension | Mechanical suspension |
Spring Leaf | 90(width)mm*13(thickness)mm*10 layers, 6pcs |
Support Leg | 28T heavy duty |
King Pin | 2.0 or 3.5 inch |
Valve | WABCO emergency valve |
Color and Logo | Customized |
Key Features & Highlights:
High-Tensile Main Beam: The main beam is constructed from Q345B steel with a reinforced "gooseneck" design to ensure zero deformation under 40-60 ton loads.
Heavy-Duty Mechanical Ramps: Equipped with dual-spring or hydraulic folding ramps, thickened and reinforced to support the immense weight of tracked machinery.
Low Working Platform: Designed with a lower cargo floor height (850mm - 1200mm) to increase stability and meet height limits under bridges or tunnels.
Reinforced Suspension & Axles: Features 13T/16T FUWA or BPW axles and heavy-duty mechanical leaf spring suspension for superior off-road performance.
Anti-Skid Decking: The loading surface features anti-skid checkered plates and side outriggers to extend the platform width for oversized cargo.
Why Choose Our Factory?
1.Direct Manufacturer: Best competitive price directly from our own workshop with strict quality control.
2.Customization Ready: We can design the length, width, and deck height according to your specific machinery transport needs.
3.Global Logistics Experience: Professional lashing for Ro-Ro and Bulk vessels to save your sea freight to global ports.
