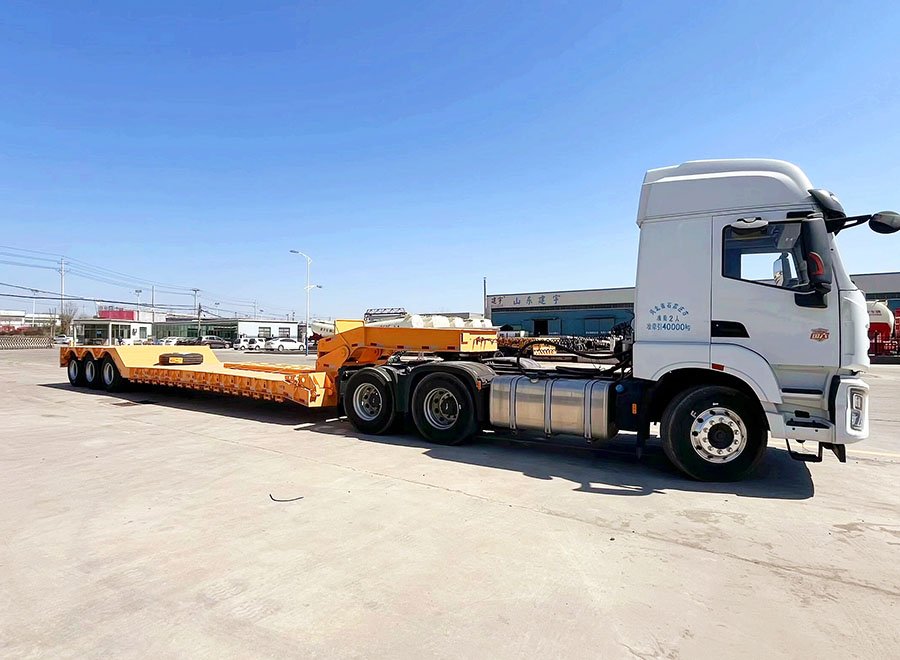

Professional Hydraulic Removable Gooseneck Lowboy Trailer

Product Description:

Share:

Product Details

Product Overview:

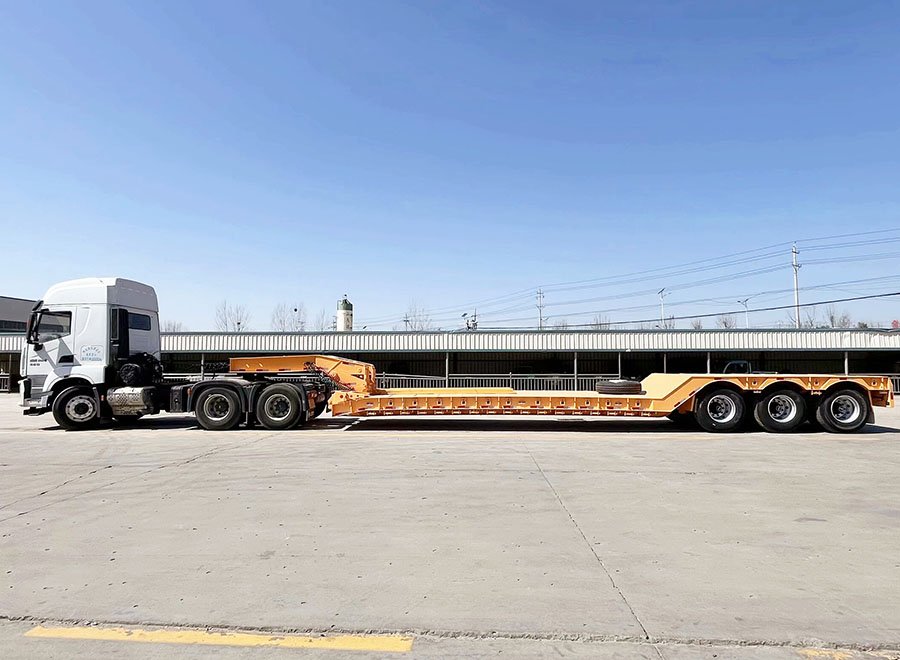

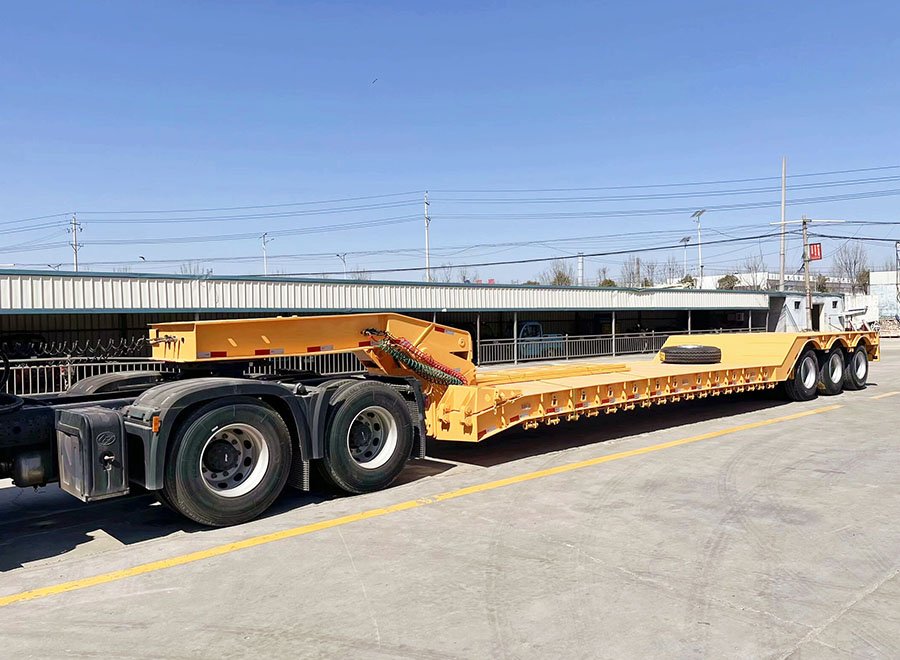

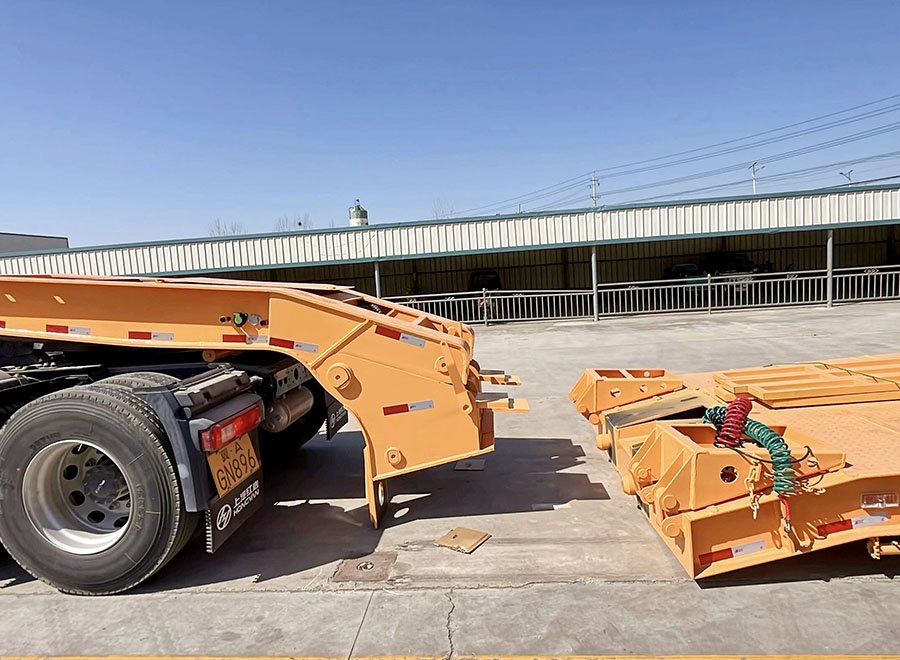

Our hydraulic detachable gooseneck low bed semi trailer (RGN trailer) represents the pinnacle of heavy-duty transport technology. Designed for the safest and most efficient loading of heavy machinery, the gooseneck can be detached from the trailer body, allowing equipment to be driven directly onto the low deck from the front. With an ultra-low working platform and high-tensile steel construction, it is the ideal choice for hauling oversized excavators and mining equipment across the challenging terrains of Africa, the Middle East, and South America.



Specifications

Outside Dimension

14000×3200×1550mm

Loading Capacity

60T-80T

Bottom Plate

4mm diamond steel plate

Main Beam

Upper plate thickness 16mm; Down plate 16mm; Middle plate12mm. High-tension steel

Side Beam

250mm  6/8/6   High-tension steel

Gooseneck

Removable

Axle

3 axles, 16T per piece

Tire

12R20, 12 pcs

Rim

8.5-20, 12 pcs

Suspension

Mechanical suspension

Spring Leaf

90(width)mm*16(thickness)mm*10 layers, 6pcs

Support Leg

28T heavy duty

King Pin

3.5 inch

Valve

WABCO emergency valve

Color and Logo

Customized


Key Features & Highlights:

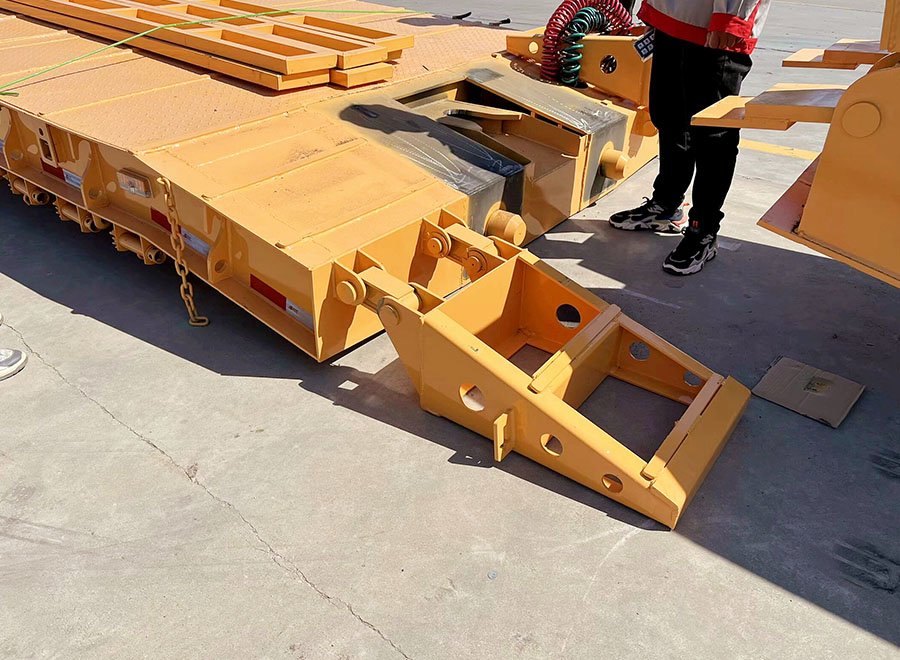

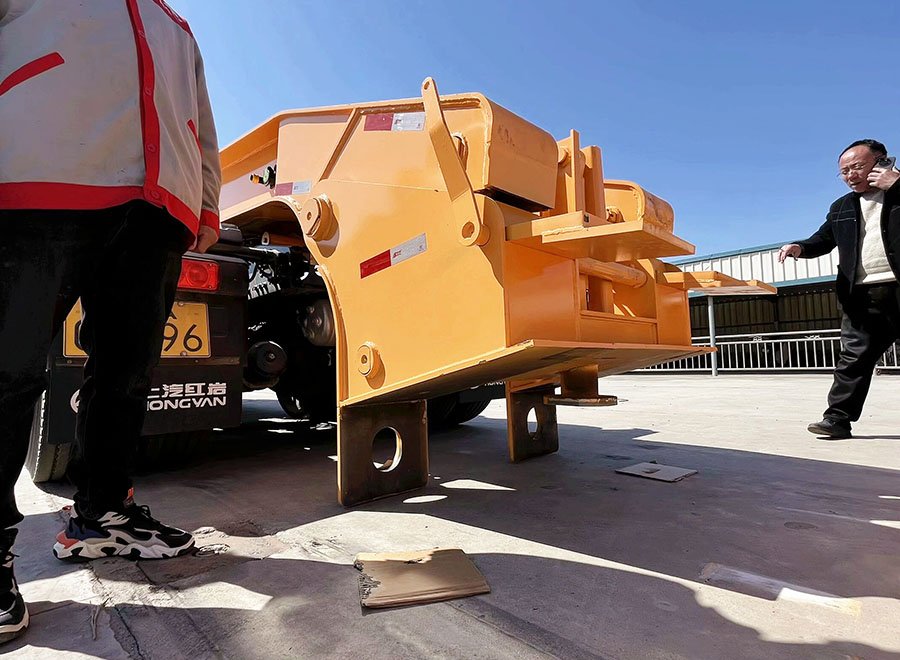

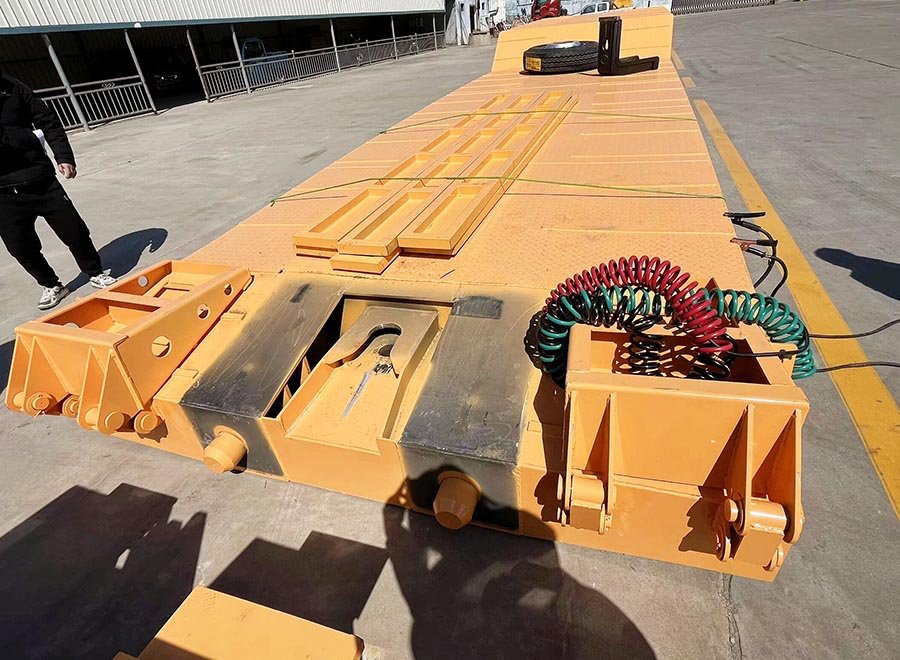

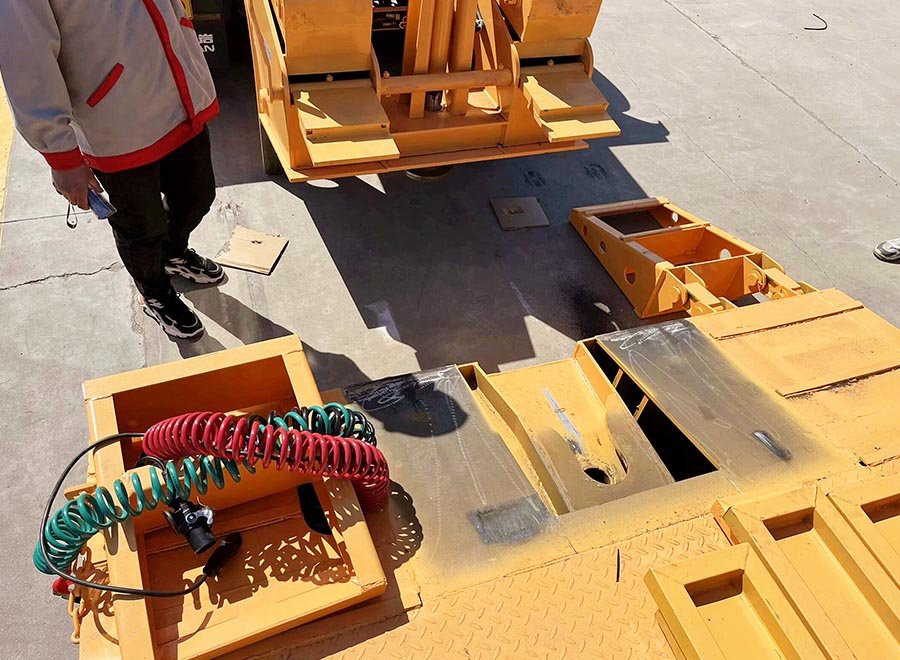

Safer Front Loading: The detachable gooseneck allows for a much smaller climbing angle, making it significantly safer and easier for heavy tracked machinery to board compared to rear-loading trailers.

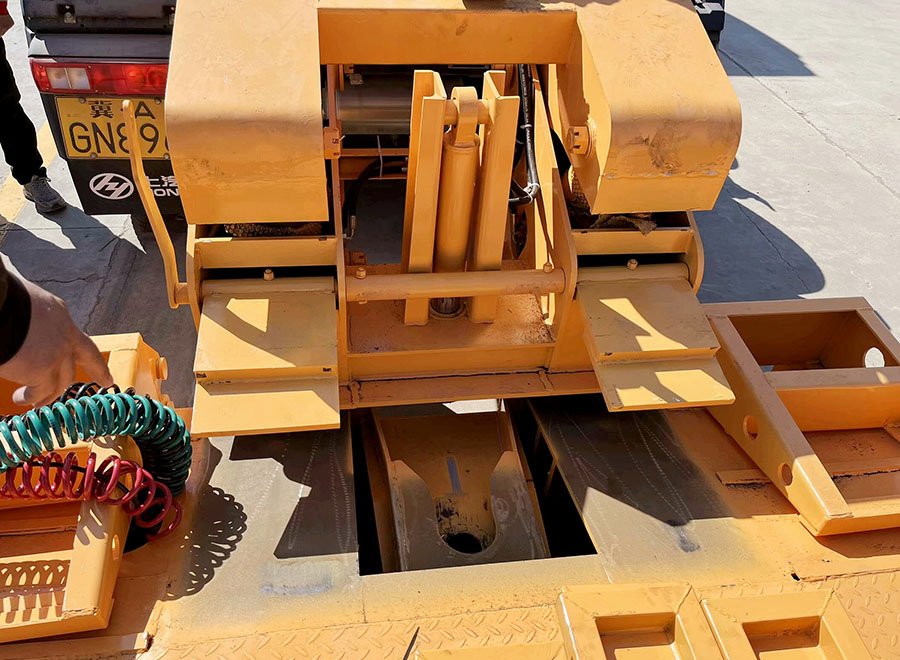

High-Powered Hydraulic System: Equipped with a reliable diesel engine or PTO-driven hydraulic system for quick detachment and height adjustment of the gooseneck.

Ultra-Low Working Deck: Offers the lowest possible ground clearance and deck height to accommodate extra-tall cargo while ensuring a low center of gravity for maximum stability.

Reinforced High-Tensile Chassis: Main beams are constructed from HG60 or T700 high-strength steel, designed to withstand extreme concentrated loads without bending.

Heavy-Duty Axle & Suspension: Features premium 13T/16T/20T axles and reinforced suspension to endure the most demanding off-road conditions in mining and construction sites.



Why Partner With Us?

1.Direct Manufacturer: Best competitive price directly from our own workshop with strict quality control.

2.Direct Factory Value: Get advanced heavy-haul technology directly from the manufacturer at a competitive export price.

3.Expert Shipping Support: We provide professional loading, lashing, and anti-rust protection for Ro-Ro and Bulk shipments to any global port.
