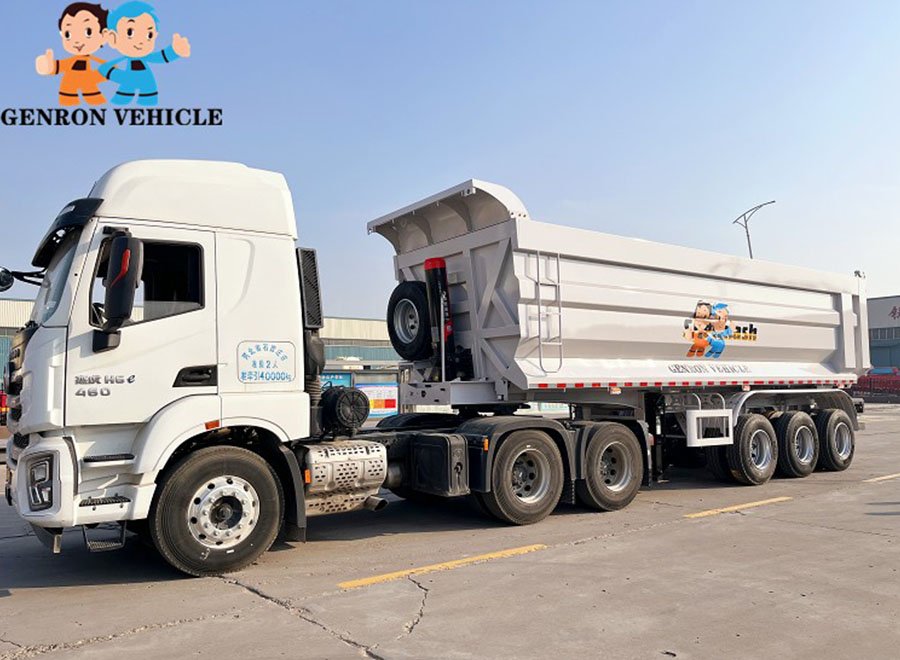

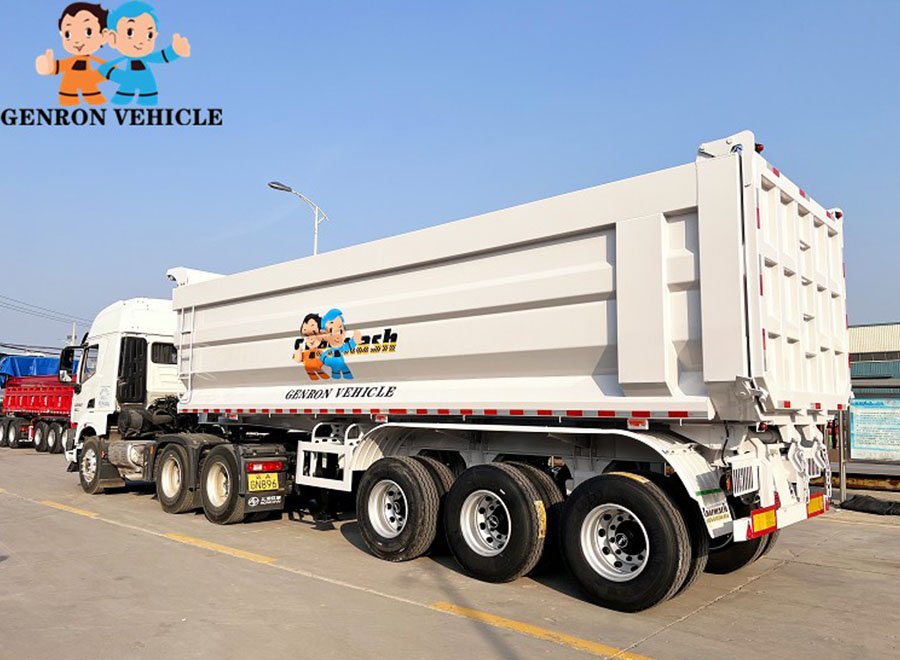

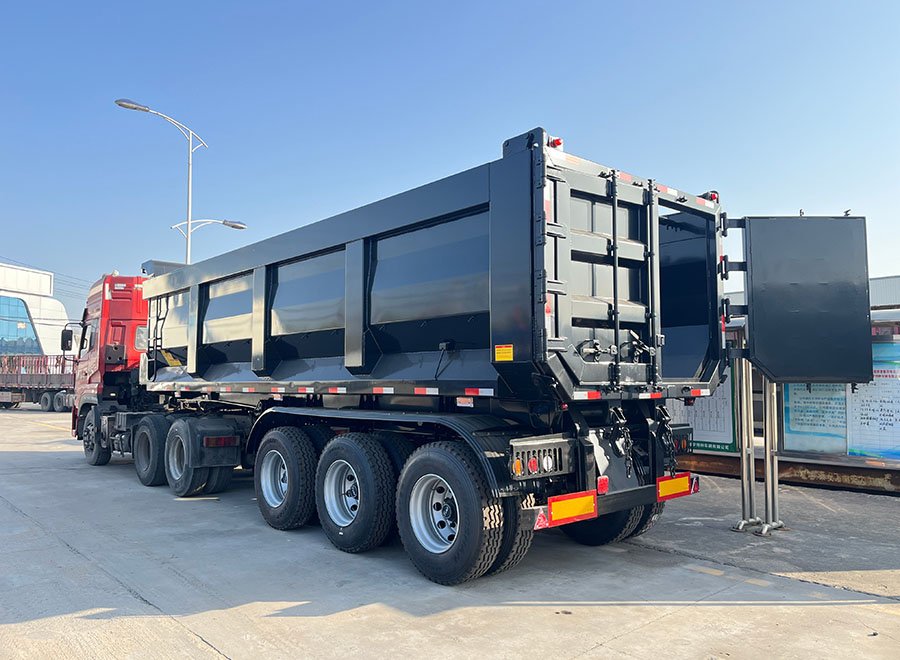

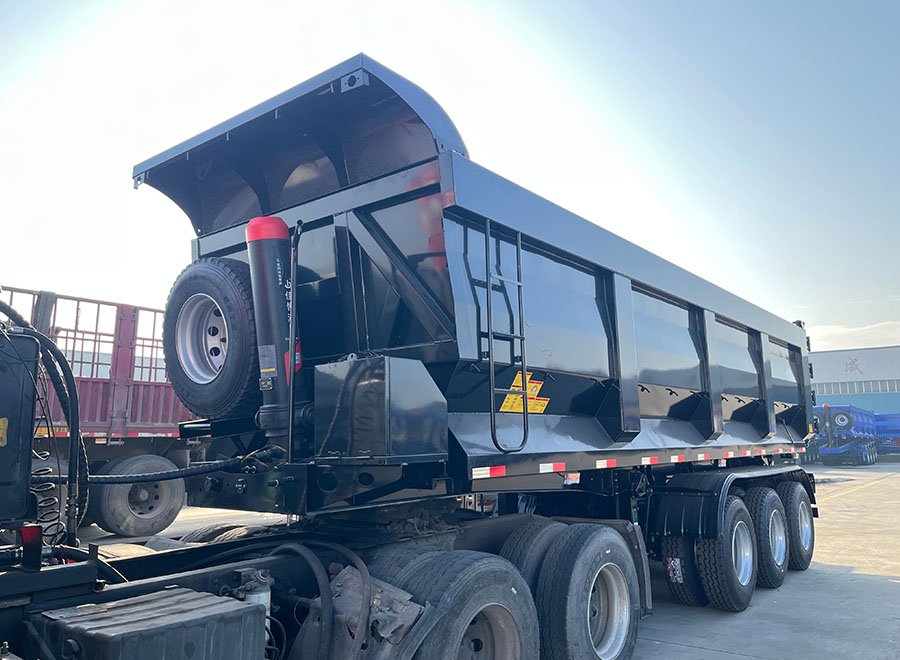

3 Axles U-type Rear Dump Semi Trailer 40-60 Tons Mining Dump Trailer

Product Description:

Share:

Request Quote Now
Add to Quote List

Product Details

Product Overview:

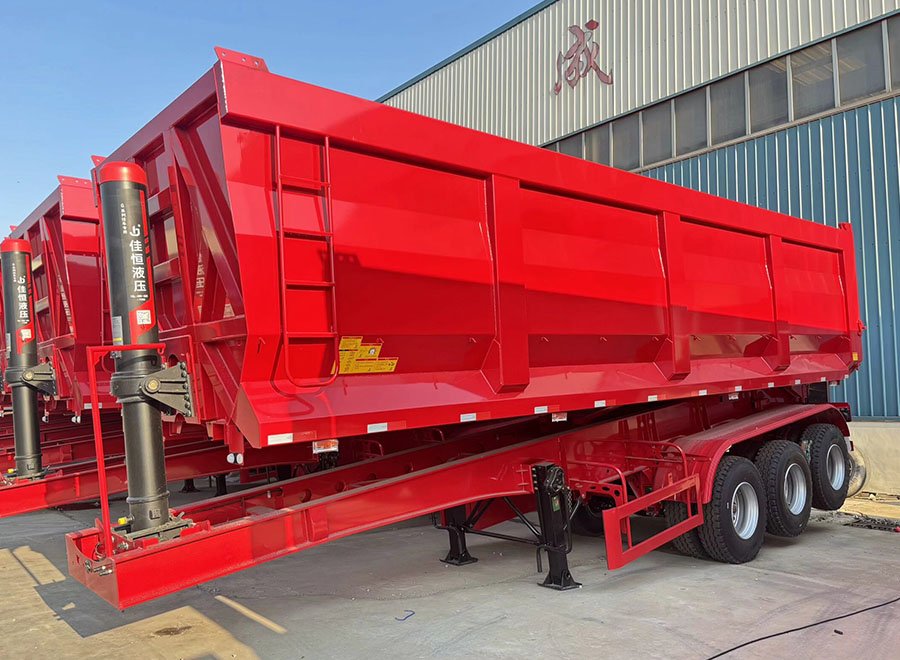

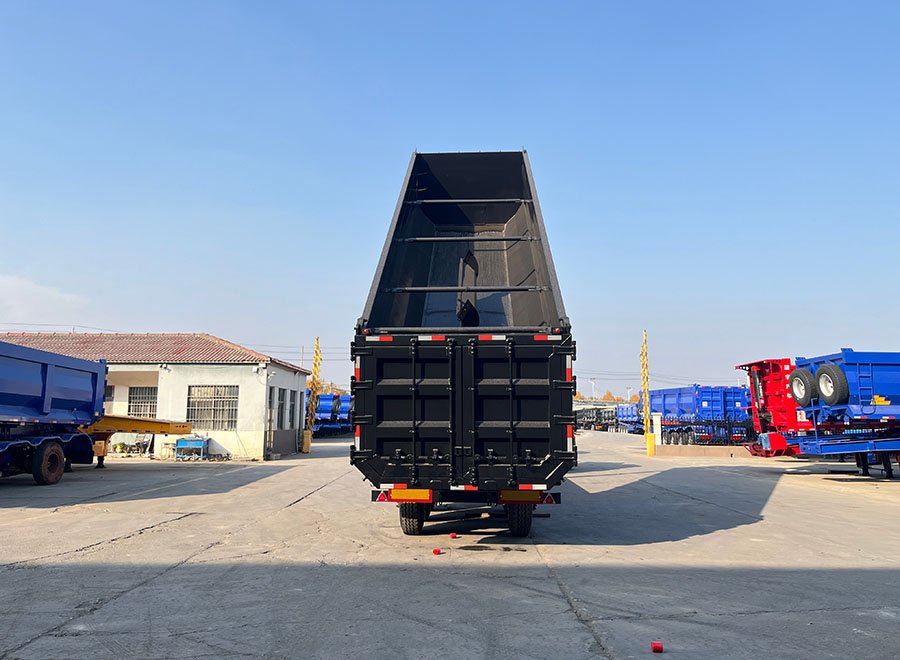

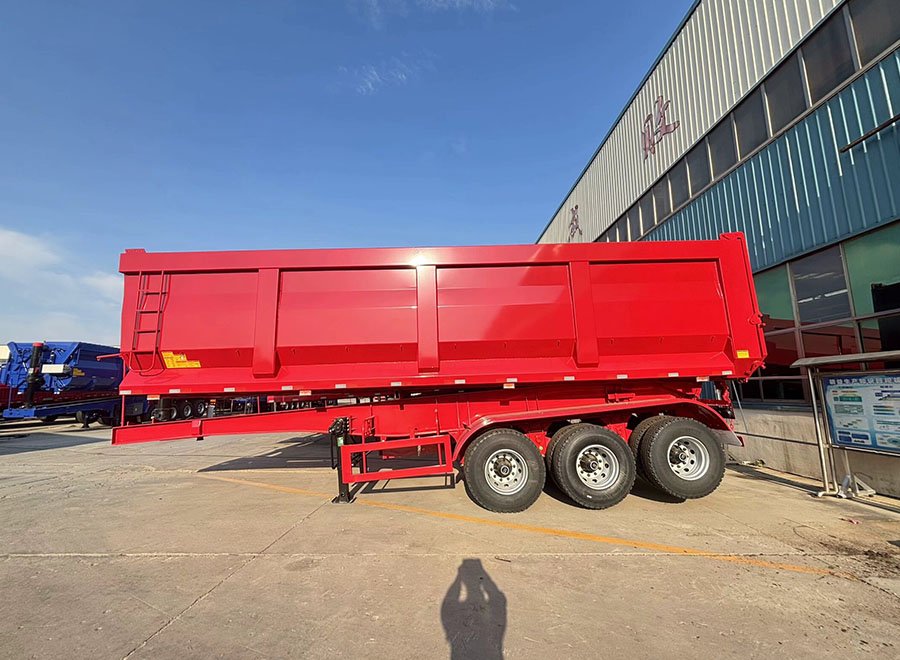

Our3 axles U-type rear dump semi trailer is the premium choice for mining, construction, and bulk material transportation. The innovative U-shape design prevents material from sticking in the corners, ensuring a faster and cleaner discharge. Built with high-tensile, wear-resistant steel (NM450/Hardox equivalent), this tipper trailer offers a lower center of gravity for maximum stability on uneven terrains. It is the ideal heavy-duty solution for hauling sand, stones, minerals, and coal across the rugged environments of Africa, South America and the Middle East.

Specifications

Outside Dimension

9500×2500×3600mm

Loading Capacity

40T-60T



Lifting Cylinder

HUBEI JIAHENG 202 complete hydraulic system

With some easy-going parts

With oil tanker and tubes

Working Box

And Main beam

High strength steel T700

Upper plate 14mm ,middle plate 8mm ,down plate 16mm

Bottom Plate Thickness: 6mm, Side Wall: 6mm

Axle and Suspension

3 axles, 13T per piece


All 3 Axles with Mechanical Suspension

Leaf spring

6pcs，90*13*10mm

Wheel Tires and Rim

315/80R22.5-18 PR  12 +1 pcs


9.00-22.5   12 +1 pcs   Carbon Steel Rim

Landing Gear

Heavy duty 28 tons

King Pin

2.0 or 3.5 inch

Valve

WABCO emergency valve

Color and Logo

Customized


Key Selling Points:

High-Efficiency U-Shape Design: The streamlined U-shape structure eliminates dead corners, significantly reducing material residue and improving unloading efficiency by 20%.

Lower Center of Gravity: The arc-shaped bottom design lowers the cargo's center of gravity, greatly reducing the risk of rollover during transit and unloading.

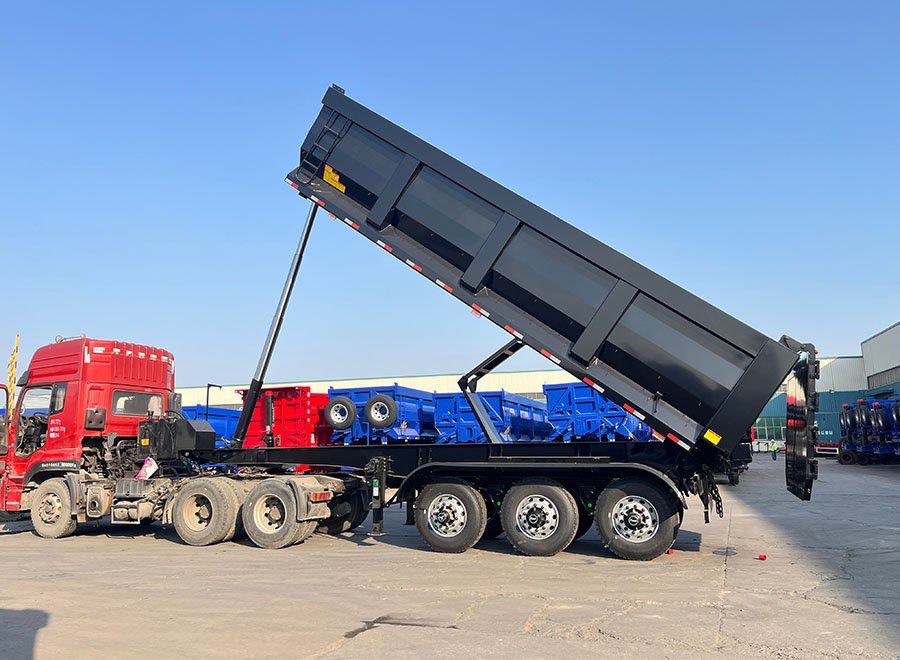

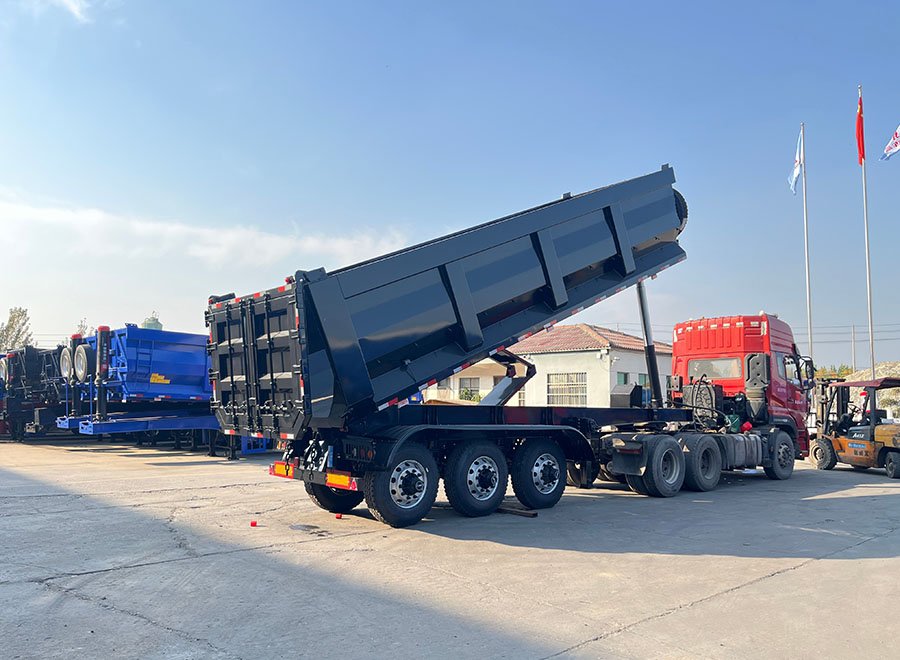

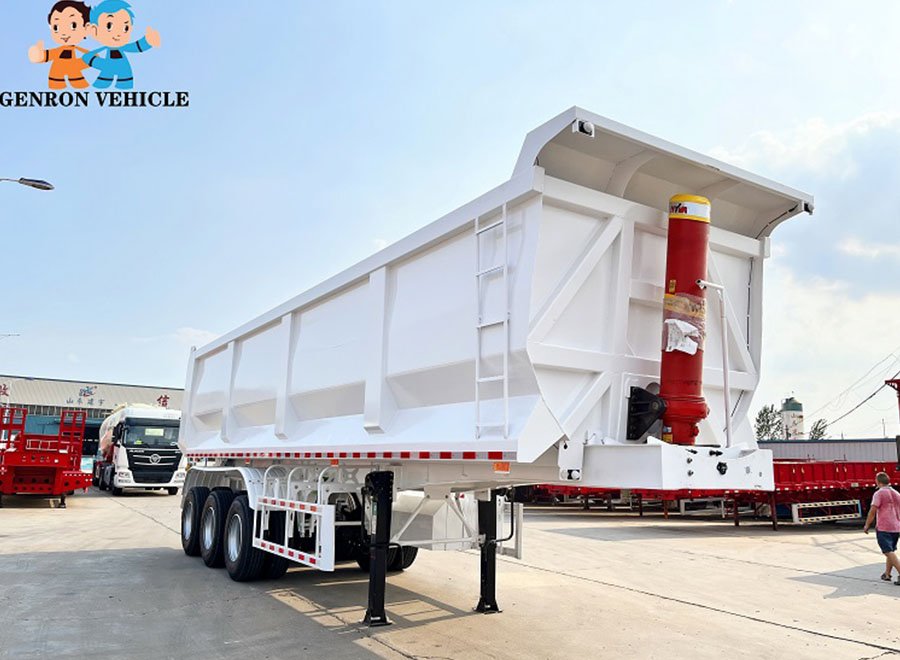

Premium Hydraulic Lifting System: Equipped with world-renowned HYVA hydraulic cylinders or high-quality factory-standard systems for smooth and powerful lifting.

Wear-Resistant High-Tensile Steel: Constructed with high-strength steel (Q345B/NM450) to ensure the bucket can withstand the impact of heavy rocks and abrasive minerals.



Why Partner With Us?

Factory Direct Pricing: Best competitive price directly from our 20-year production facility.

Engineering Expertise: Specialized in U-type design to optimize weight distribution and fuel economy for our clients.

Global Logistics Experience: Expertise in Bulk and Ro-Ro shipping to South America, Africa, and the Middle East with professional lashing.
