How to Choose a 13.5m 3 Axle Low Bed Trailer for Heavy Equipment Transport

Moving an excavator or bulldozer is different from transporting ordinary cargo. Construction machinery is heavy, tall and often difficult to load. The trailer must support concentrated weight, provide a stable loading platform and allow the equipment to enter and leave safely.

The 13.5m 3 axle low bed semi trailer, also called a lowboy trailer in some markets, is designed for these demanding transport tasks. Its lowered deck reduces the center of gravity and helps control the overall height of the loaded vehicle.

This is especially important when transporting excavators, bulldozers, wheel loaders, agricultural machinery and other equipment across long distances or through areas with bridge and overhead-clearance restrictions.

For customers in Africa, Southeast Asia, the Middle East and South America, the correct trailer configuration should be based on the actual machine weight, dimensions, road conditions and local axle-load rules—not simply the highest advertised payload.

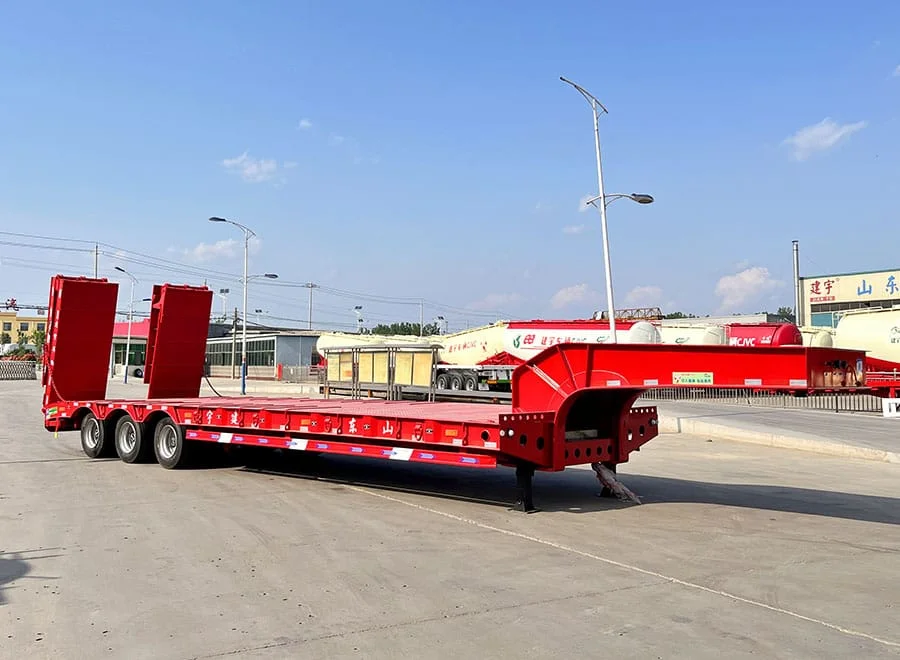

Genron 13.5m three-axle low bed trailer with loading ramps for heavy machinery transport.

-->

Key Takeaways

• The 13.5m trailer is designed for machinery, special equipment and selected container transport.

• A lower deck helps improve loaded stability and reduce total transport height.

• The stated loading range is 40–60 tons, subject to final configuration and local regulations.

• Mechanical or hydraulic ramps can be selected according to loading frequency and equipment type.

• T700 high-tensile steel is used in the main structural sections.

• Axle capacity, concentrated machine weight and load position must be evaluated together.

What Is a Low Bed Semi Trailer?

A low bed semi trailer is a heavy-haul trailer with a loading platform positioned lower than that of a standard flatbed trailer. The lowered deck allows tall machinery to be transported while keeping the overall loaded height under better control.

Most low bed trailers use rear loading ramps. Machinery can drive or be winched onto the platform without requiring a crane for every loading operation.

Depending on the design, the ramps may be operated mechanically or hydraulically. Hydraulic ramps reduce manual effort and are useful for fleets that load and unload equipment frequently.

Why the Lower Deck Matters

Excavators and bulldozers have a high center of gravity. Carrying them on a standard-height platform can increase the total loaded height and may reduce transport stability.

A low deck helps position the machine closer to the road surface. This improves stability and may make it easier to comply with route height restrictions.

Main Applications of a 13.5m Low Bed Trailer

Excavator Transportation

Excavators are among the most common machines carried on low bed trailers. Before transport, buyers should confirm the excavator’s operating weight, track width, overall length and boom position.

Bulldozer and Loader Transport

Bulldozers and wheel loaders produce concentrated loads at their tracks or tires. The platform, main beam and cross members must be designed to support these load points safely.

Construction and Mining Machinery

Low bed trailers can also transport graders, rollers, crushers, drilling equipment, mining components, generators and other project machinery.

Agricultural Equipment

Large tractors, harvesters and other agricultural machines can be transported when the deck width, ramp angle and payload configuration match the equipment dimensions.

Container and General Cargo Transport

This trailer may also be configured for selected container or general cargo applications. However, twist-lock layout and platform dimensions should be confirmed before production because machinery transport and container transport place different demands on the trailer.

-->

Technical Specifications

The following specifications describe the configuration supplied for this 13.5m 3 axle low bed semi trailer. Final specifications may be adjusted according to the transported machine, local road rules and customer requirements.

       Specification note:

The rated payload should not be evaluated only from the number of axles. Machine weight distribution, axle spacing, kingpin load, road regulations and operating conditions must also be considered.

Important Features to Check Before Purchasing

1. Main-Beam Material and Thickness

The main beam carries most of the structural load. This configuration uses T700 high-tensile steel with different upper, lower and middle plate thicknesses to balance strength and trailer weight.

Buyers should provide the exact machine weight and loading position. A trailer designed for evenly distributed cargo may not be suitable for equipment that concentrates most of its weight in a small area.

2. Loading Ramp Type

Mechanical ramps are simple and economical. They are suitable for buyers who load equipment less frequently or prefer a basic structure.

Hydraulic ramps reduce manual effort and can improve loading efficiency. They are more suitable for fleets that move machinery regularly.

3. Ramp Angle and Machine Ground Clearance

A steep ramp can cause low-ground-clearance machinery to touch the trailer during loading. The ramp length, deck height and transition angle should match the equipment being carried.

4. Platform Width

The listed trailer width is 3000 mm. Buyers should compare this figure with the machine track width or tire width and confirm whether local permits are required for oversized transport.

5. Axles and Suspension

Three 13-ton axles and mechanical suspension provide a practical heavy-duty configuration. Mechanical suspension remains popular in developing markets because it is strong, familiar to repair teams and suitable for demanding roads.

6. Braking and Safety Equipment

The WABCO emergency valve supports reliable braking performance. Buyers should also confirm lighting, reflective markings, ABS requirements, chains, tie-down points and local registration standards.

Low Bed Trailer vs Flatbed Trailer

A flatbed trailer is generally better for containers and general cargo. A low bed trailer is the more appropriate option when the cargo is tall, heavy or self-propelled machinery that needs to drive onto the trailer.

How to Choose the Right Low Bed Trailer

Confirm the Machine Specifications

Provide the equipment model, operating weight, overall dimensions, track width, ground clearance and loading position. A product photo alone is not enough for correct trailer design.

Confirm the Heaviest Machine

Fleets often carry several machine types. The trailer should normally be configured around the heaviest and most difficult machine expected during regular operation.

Check Local Road Regulations

A 3000 mm-wide trailer may require an oversized-transport permit in some countries. Buyers should verify maximum width, axle load, total combination weight and route restrictions.

Select Mechanical or Hydraulic Ramps

Mechanical ramps control purchase and maintenance costs. Hydraulic ramps improve convenience. The best choice depends on loading frequency, operator preference and maintenance capability.

Check Tire Suitability

Tire size affects deck height, ground clearance and load capability. Buyers should confirm that replacement tires are readily available in the destination market.

Plan the Shipping Method

Low bed trailers are commonly shipped by bulk vessel, Ro-Ro vessel or containerized methods after partial disassembly. Shipment design should be discussed before production to control ocean-freight costs.

           Need a low bed trailer recommendation?                            Send the machine model, operating weight, overall dimensions, destination country and required quantity. The Genron team will help evaluate a suitable trailer configuration.

           WhatsApp Us                            Email Us

Related Products and Guides

•            13.5m 3 Axles Low Bed Semi Trailer

•            3 Axles Flatbed Semi Trailer

•            5 Axles 80 Ton Flatbed Semi Trailer

•            Bulk Cargo Transport Semi Trailer

•            Contact Genron

Frequently Asked Questions

Final Recommendation

The 13.5m 3 axle low bed semi trailer is a practical solution for transporting excavators, bulldozers, loaders, construction machinery and special equipment.

Its lower platform, reinforced T700 main beam and rear loading ramps help improve equipment-loading convenience and transport stability.

Before ordering, buyers should confirm the exact machine dimensions and weight, because concentrated equipment loads require more careful trailer design than general cargo.
