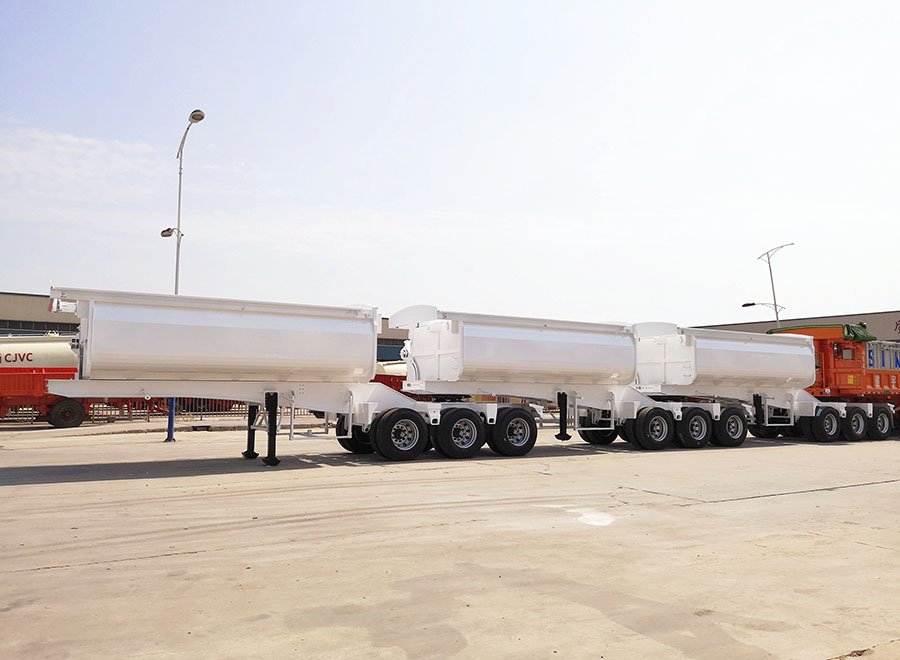

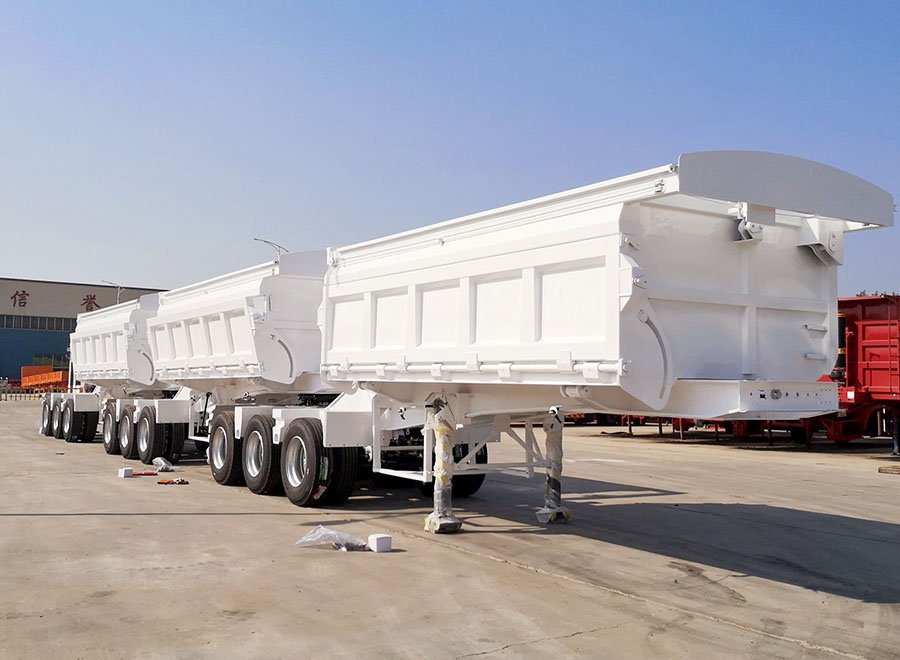

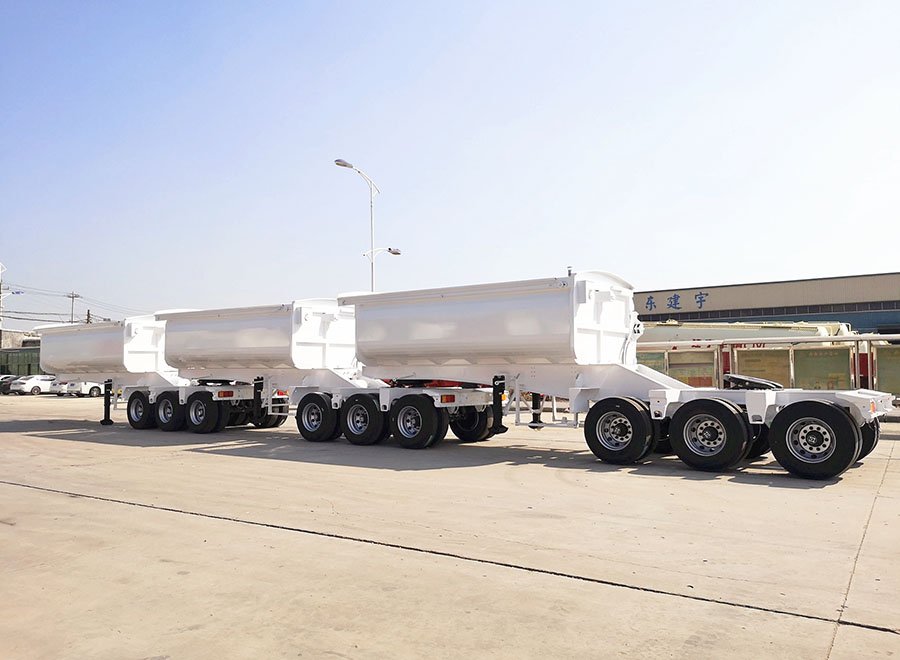

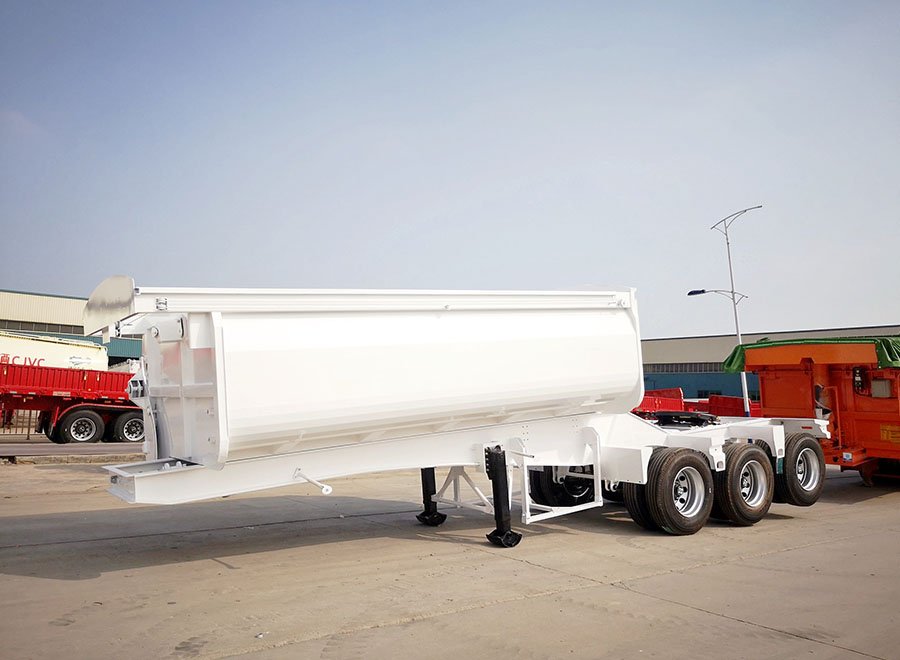

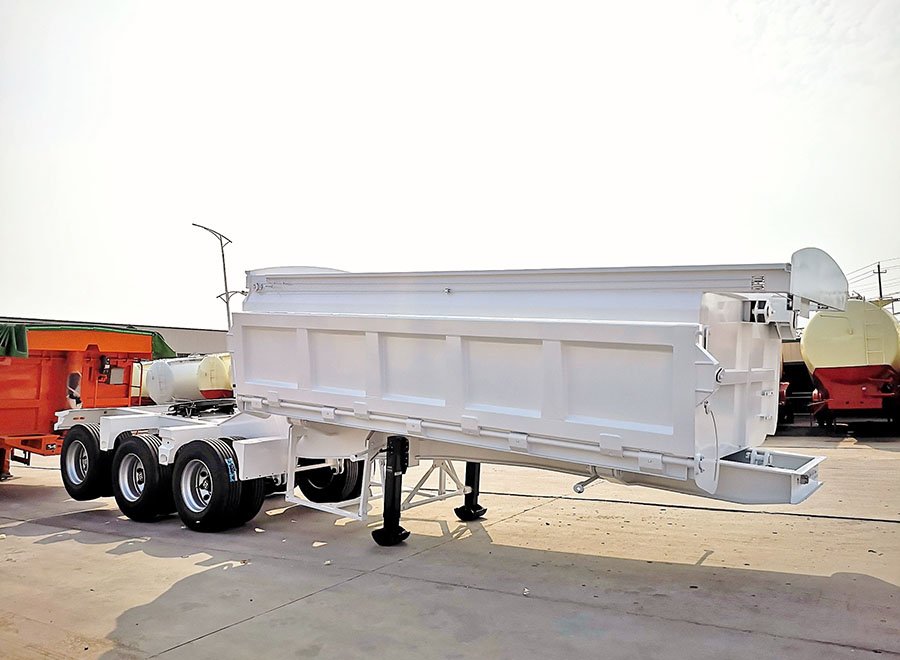

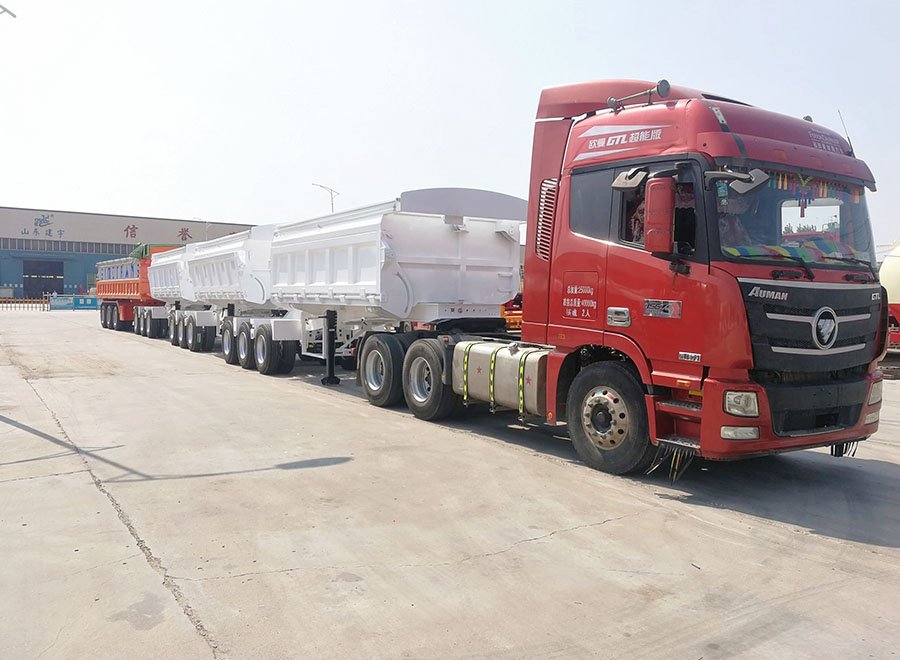

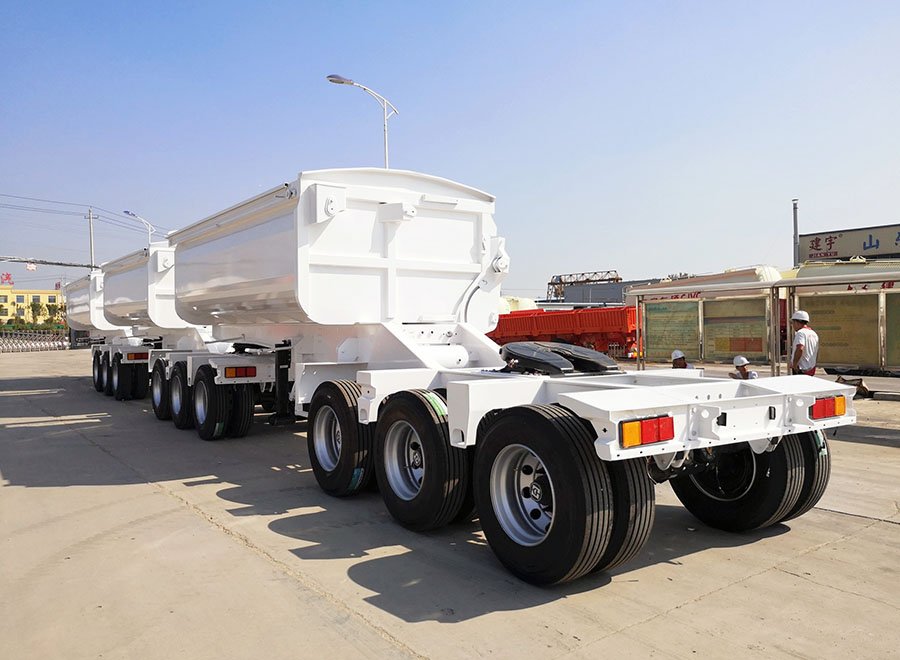

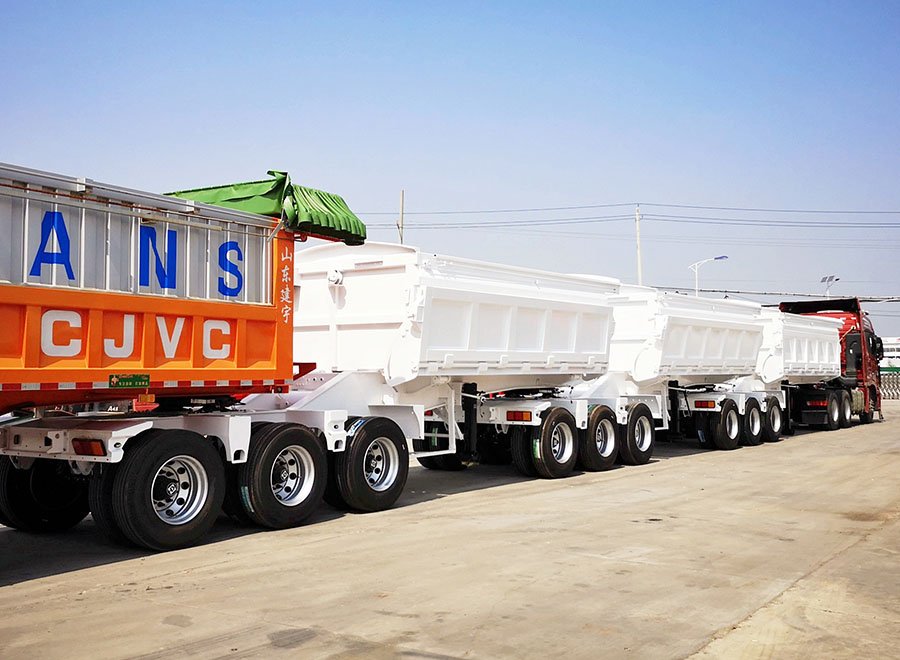

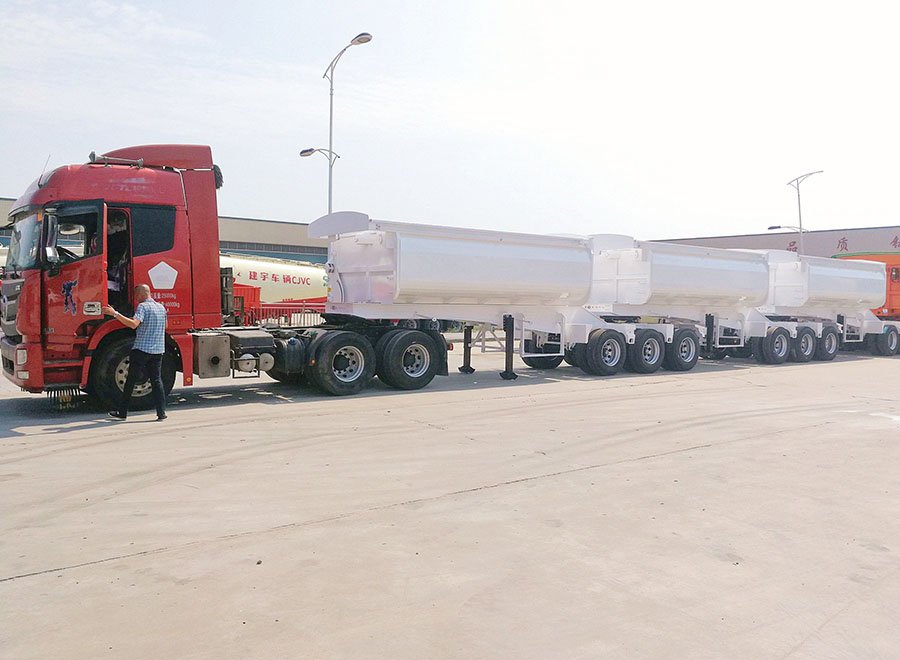

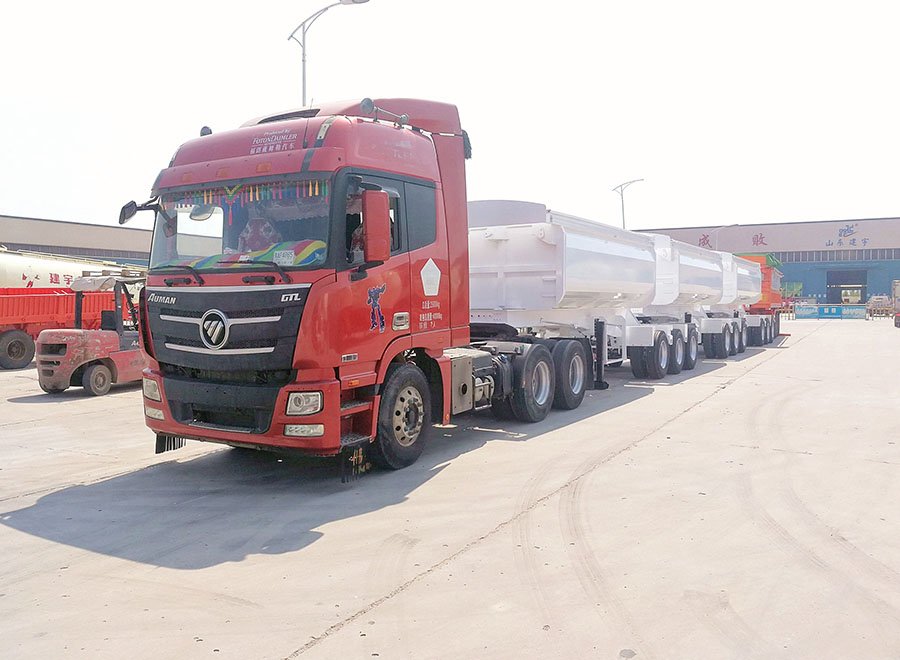

High Volume 80 Tons Australian Model Super Link Side Tipper Trailer 3 Axles + 3 Axles

Product Description:

Share:

Request Quote Now
Add to Quote List

Product Details

Product Overview:

Engineered to the rigorous Australian transport standards, our Super Link (B-Double) side tipper semi trailer is the ultimate solution for high-capacity bulk logistics. This 3+3 axle configuration allows for massive payloads of up to 80 tons, significantly reducing the cost per ton-kilometer. Designed for the toughest mining corridors in Africa and South America, it features a lower center of gravity and superior articulation, ensuring safe, rapid unloading of minerals, coal, and sand in challenging environments.


Specifications

Outside Dimension

5000×2050×3000mm(Front)

6300×2050×3000mm(Rear)

Loading Capacity

Total about 80 tons

Working Space(m3)

Total about 43.5 m³

Dumping Box

Bottom plate :4mm; Side wall Thickness: 3mm;

Material: Q235

Cylinder

Front 2 pcs + back side 2 pcs

Main Beam

Height is 500 mm. Upper plate is 16mm; Down plate is 18 mm; Middle plate is 10 mm. Material is Q345.

Axle

6 pcs 13 tons axles, FUWA brand

Suspension

Mechanical suspension

Leaf spring

90(W)mm*13(Thickness)mm*10Layer  (6+6) units

Rim

8.5-20 steel   24 pcs

Tire

12R20 18 PR  24 pcs

Landing Gear

Heavy duty 28 tons

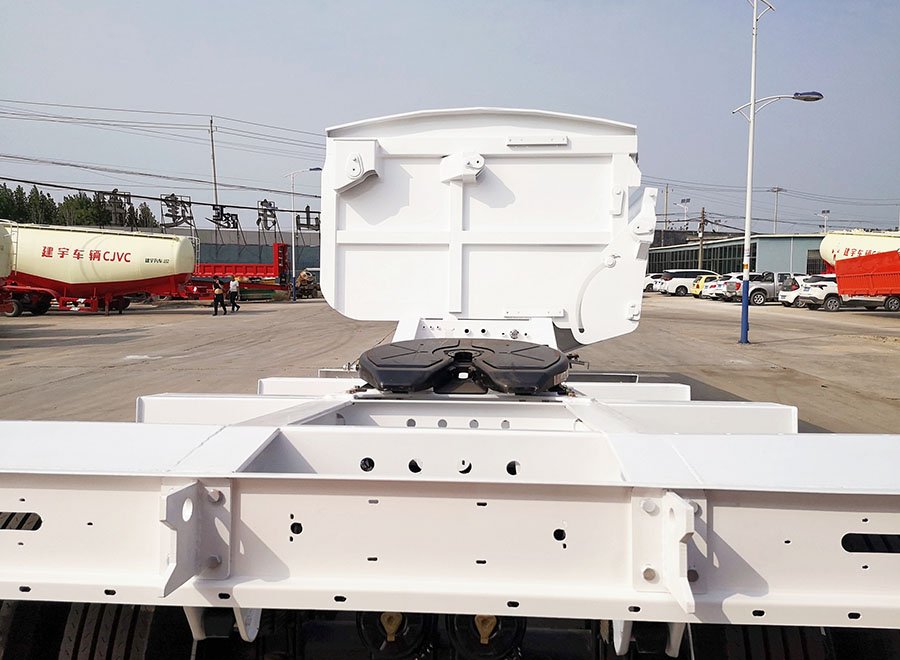

King Pin

2.0 or 3.5 inch

Valve

WABCO emergency valve

Color and Logo

Customized


Key Selling Points:

Unmatched Transport Efficiency: The B-Double configuration enables the transport of nearly double the volume of a single trailer, maximizing fleet productivity.

Australian Standard Engineering: Reinforced chassis and body design inspired by Australian "Road Train" technology to withstand constant vibration and heavy stress.

High-Stability Side Dumping: Multiple heavy-duty hydraulic cylinders ensure smooth, synchronized side-tipping, reducing the risk of rollover compared to rear tippers.

Wear-Resistant High-Tensile Steel: Constructed with Q345B or NM450 steel to handle high-impact minerals while maintaining a lightweight profile for higher legal payloads.

Heavy-Duty Axle & Suspension: Features 16T/20T FUWA or BPW axles and reinforced mechanical leaf spring suspension for off-road mining reliability.



Why Partner With Us?

Interlink Design Mastery: Over 20 years of experience in complex B-double stress distribution and articulation engineering.

Customized for Mining: We adjust axle spacing and bin dimensions to meet specific mining regulations in regions like Zambia, DRC, and Peru.

Export & Logistics Excellence: Professional disassembly and stacking solutions to minimize shipping costs to global ports.
